Запчасти Case IH RB464 (18.04) - DIA KIT, SAFETY CHAIN KIT (18) - ACCESSORIES

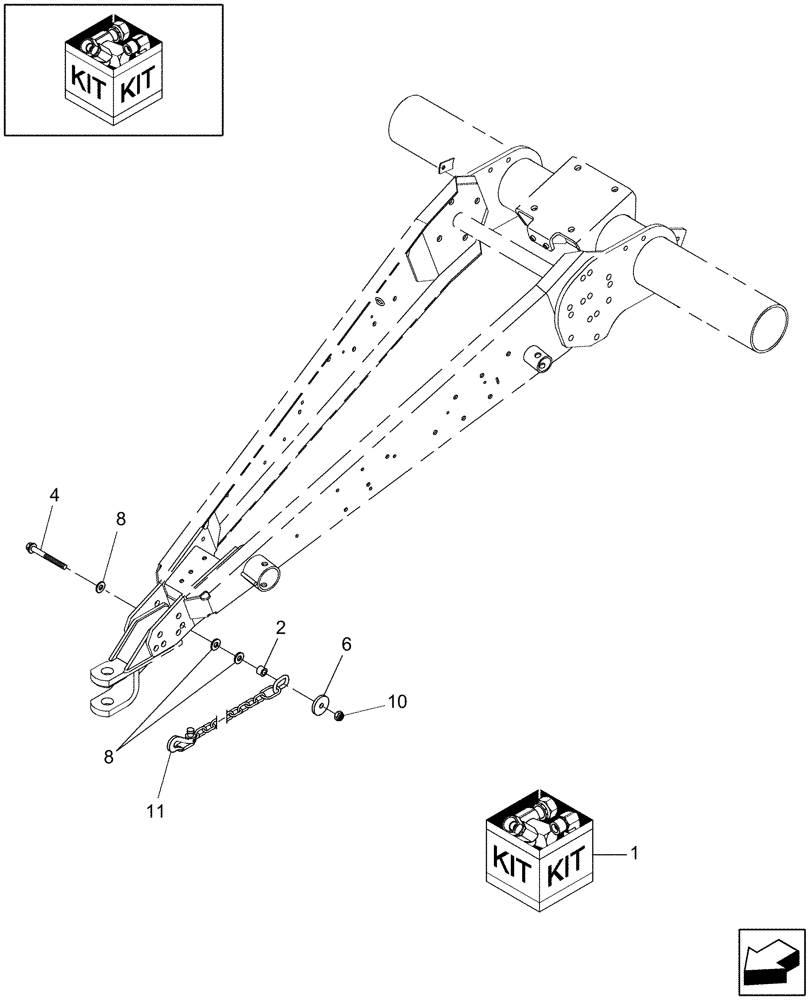

Схема запчастей Case IH RB464 - (18.04) - DIA KIT, SAFETY CHAIN KIT (18) - ACCESSORIES
8
2
1
10
8
6
11
4

Артикул

Название

Примечание

Количество

1

87018297

DIA KIT, HARVESTER

Safety Chain, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

4

814-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 8.8

1шт.

6

636422

WASHER,16.66mm ID x 69.85mm OD

21/32" ID x 2-3/4" OD x 3/8" Thk

1шт.

8

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

3шт.

10

832-46416

NUT,M16 x 2, Cl 8

1шт.

11

850116

CHAIN

Safety

1шт.

Выбрано товаров: 8
