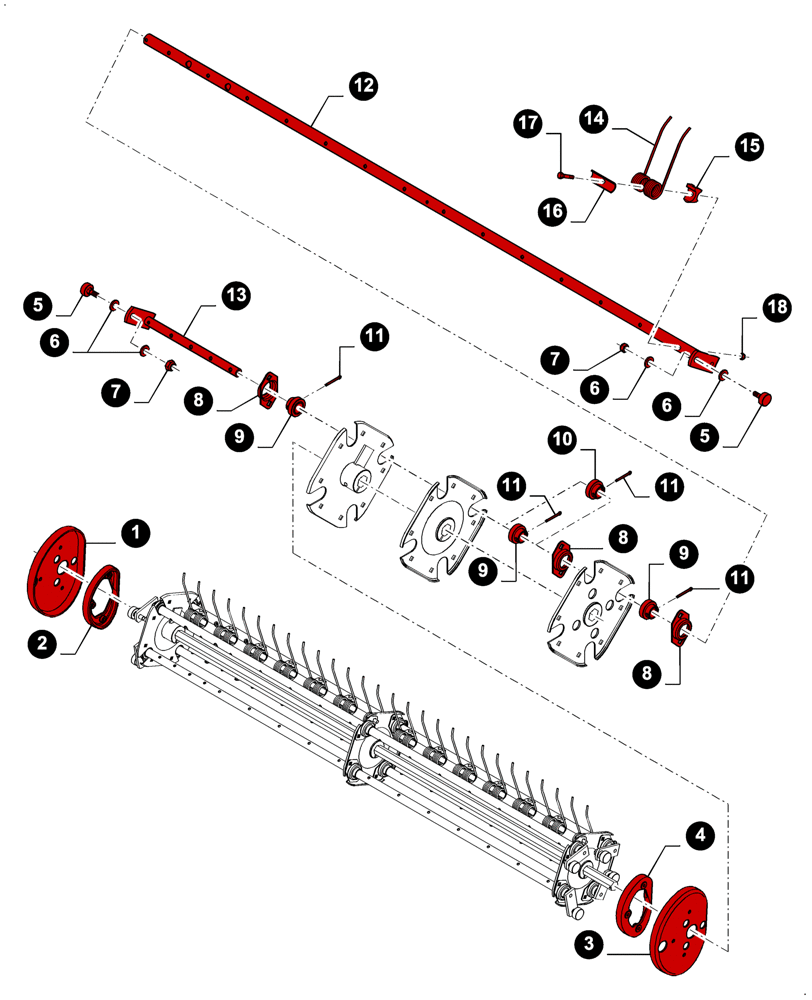

Запчасти Case IH RB464 (00.00RB209) - MAINTENANCE PARTS, 1.8 M WIDE PICK-UP REEL (00) - GENERAL

1

87059146

CAM

RH, Outer

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

1

87036227

CAM

RH, Outer

1шт.

2

87059147

CAM

RH, Inner

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

2

87036226

CAM

RH, Inner

1шт.

3

87641735

CAM

LH, Outer

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

3

87032200

CAM

LH, Outer

1шт.

4

87641736

CAM

LH, Inner

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

4

87032003

CAM

LH, Inner

1шт.

5

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

SINGLE CAM PICK-UP

1шт.

5

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

DUAL CAM PICK-UP

1шт.

6

703960

WASHER

1-1/4" OD, Hardened

8шт.

SINGLE CAM PICK-UP

1шт.

6

87642988

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

1-1/4" OD, Hardened

16шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

6

703960

WASHER

1-1/4" OD, Hardened

16шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

6

87642988

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

1-1/4" OD, Hardened

16шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

7

88130

NUT,1/2"-20, GC

4шт.

SINGLE CAM PICK-UP

1шт.

7

88130

NUT,1/2"-20, GC

8шт.

DUAL CAM PICK-UP

1шт.

8

54695

BEARING HOUSING

12шт.

9

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

12шт.

SINGLE CAM PICK-UP

1шт.

9

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

12шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

9

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

8шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

10

87056792

BEARING,27.3mm ID x 47.09mm OD x 12.83mm W

4шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

11

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

12шт.

12

87040882

ARM

LH

4шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

SINGLE CAM PICK-UP

1шт.

12

87732735

ARM

LH

4шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

13

87023410

TINE BAR,300.5mm L

RH

4шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

13

87732736

ARM

RH

4шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

14

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pick-up, Curved, Black, Premium, Standard

56шт.

14

87607074

TINE

Pick-up, Curved, Black, Economy, Optional

56шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

SINGLE CAM PICK-UP

1шт.

15

84427925

TINE BAR

Pick-up tine

56шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

15

86627654

TINE BAR

Pick-up tine

56шт.

16

134921

BRACKET

Pick-up tine

56шт.

16

87643386

BRACKET

Pick-up tine

56шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

17

130891

BOLT,Tine, 5/16" - 18 x 2"

Pick-up tine, Special

56шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

SINGLE CAM PICK-UP

1шт.

17

87642989

BOLT,Tine, 5/16" - 18 x 2"

Pick-up tine, Special

56шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.

18

231-4145

NUT,5/16"-18, GB

56шт.

DUAL CAM PICK-UP - BETWEEN P.I.N. Y7N032117 & Y8N0388893

1шт.

SINGLE CAM PICK-UP

1шт.

18

86629544

NUT,5/16” – 18, GR B

56шт.

DUAL CAM PICK-UP - P.I.N. Y8N0388894 & AFTER

1шт.

WITH ROTOR, EUROPE & R.O.W.

1шт.
