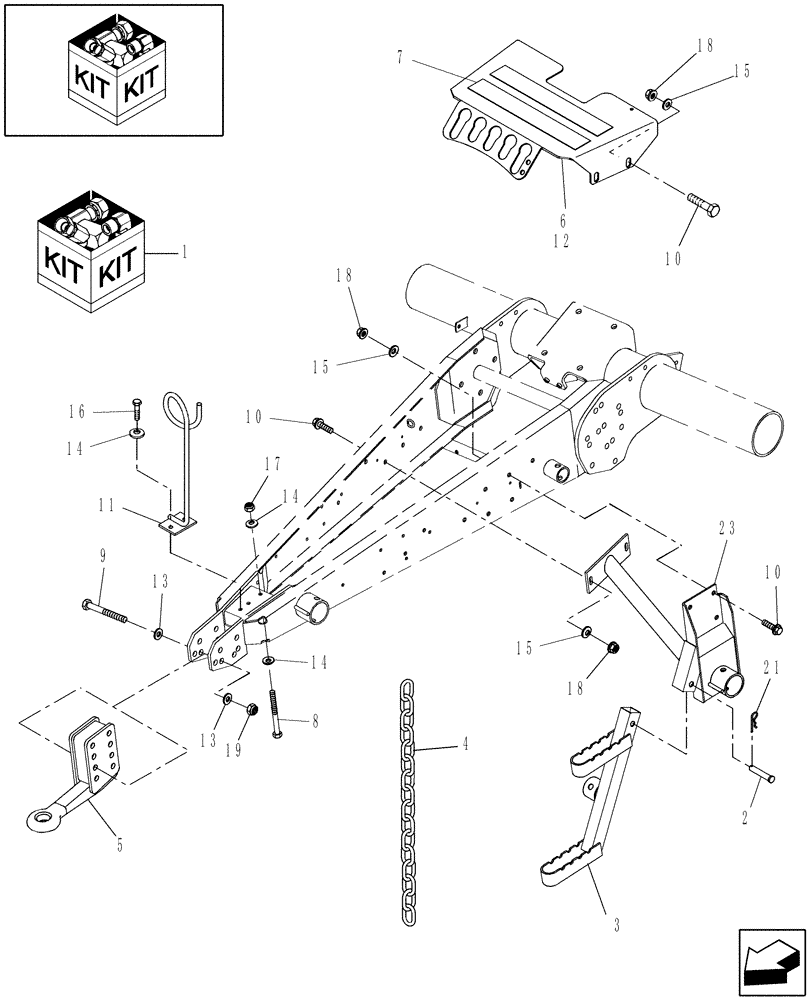

Артикул
Название
Примечание
Количество
1
87347912
DIA KIT, HARVESTER
High Hitch, Includes: Instructions
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
2
270135
CLEVIS PIN
1шт.
3
86979534
STEP
1шт.
4
264035
CHAIN
1шт.
5
87023114
HITCH
Ring
1шт.
6
87756951
STEP
High Hitch, BR & BR-A Series Balers Only
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
7
263636
ANTI-SKID STRIP
2шт.
8
86508574
BOLT,Hex, M10 x 120mm, Cl 8.8
2шт.
9
321246
BOLT,Hex, M16 x 2 x 120mm, Cl 8.8
4шт.
10
9670066
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
10шт.
11
87042252
SUPPORT
1шт.
12
87556966
STEP
High Hitch, BR7000 Series Balers Only
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
13
130358
WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk
Hardened, 5/8"
8шт.
15
140046
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
10шт.
16
9804262
BOLT,M10 x 39.2mm, Cl 8.8
2шт.
17
100037
LOCK NUT,M10 x 1.5, Cl 8
2шт.
19
86000441
NUT,M16 x 2.0, Cl 8
Prevailing Torque
4шт.
20
129365
COTTER PIN
.094" x 2-5/16"
1шт.
21
86625813
TUBE
1шт.
23
87032220
MOUNTING PARTS
1шт.
Выбрано товаров: 25
