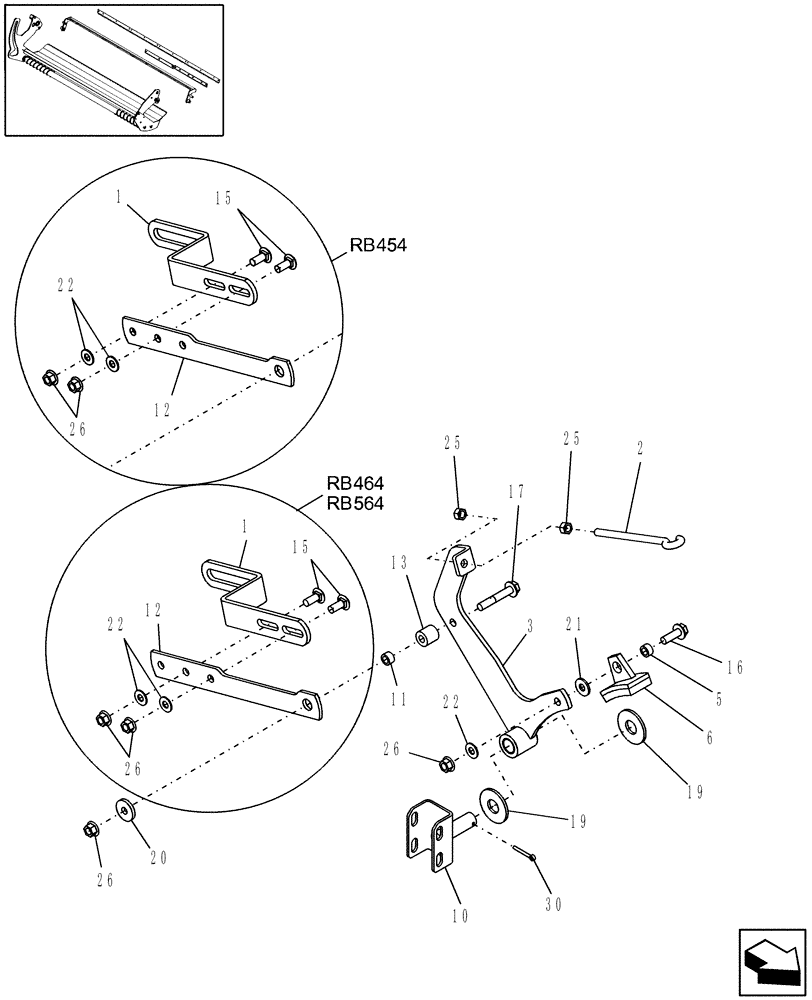

Запчасти Case IH RB464 (15.79) - NET BRAKE (15) - KNOTTER /WRAPPER

1

86613366

ANGLE

1шт.

2

36835

EYEBOLT,G2, 3/8"-16 x 6-1/2"

3/8"-16 x 3-1/2"

1шт.

3

87521375

SUPPORT

1шт.

4

84024585

BUSHING,20mm ID x 23mm OD x 15mm Thk

2шт.

5

84024749

SPACER,10.5mm ID x 16mm OD x 8.5mm L

1шт.

6

86641342

BRAKE PAD,17.37mm Thk

1шт.

MAINTENANCE PART

1шт.

10

86615124

CHANNEL

1шт.

11

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

12

86613365

STRAP

1шт.

13

87017552

SPACER

1шт.

15

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

16

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

17

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

1шт.

19

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

20

678235

WASHER

Hardened, 1-1/4" OD

1шт.

21

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

Hardened, 3/8"

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

25

9628503

NUT,3/8"-16, G5

2шт.

26

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

30

412685

COTTER PIN,M4 x 32

1шт.
