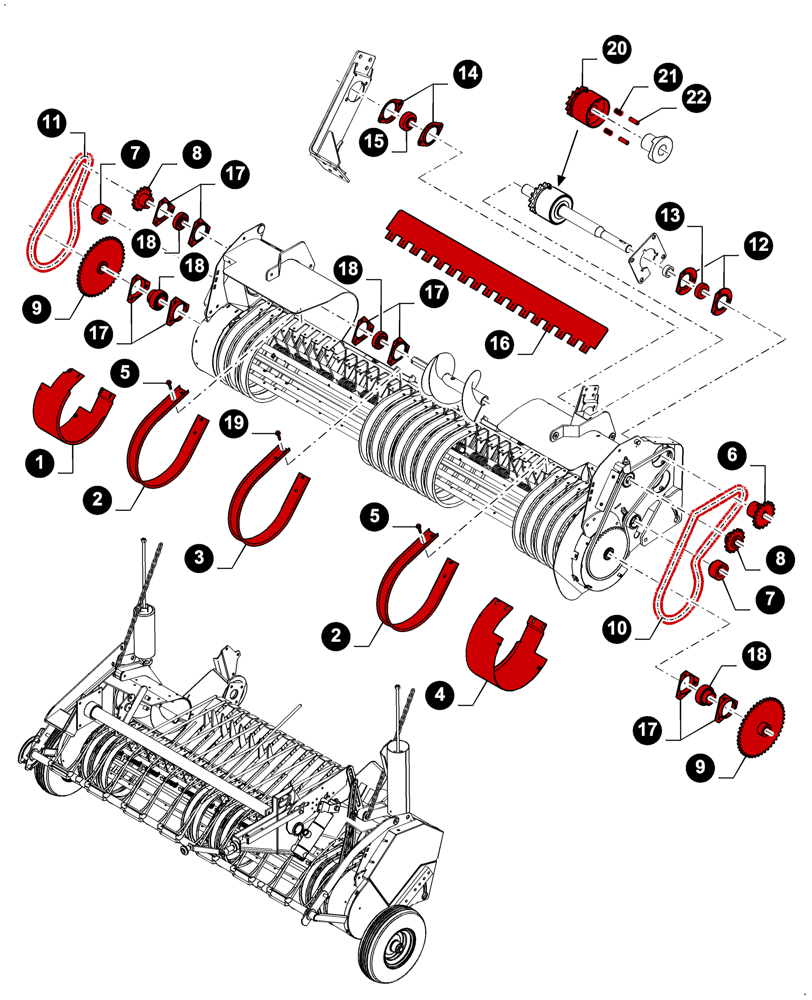

Запчасти Case IH RB464 (00.00RB208) - MAINTENANCE PARTS, 1.8 M WIDE PICK-UP UNIT WITH ROTOR (00) - GENERAL

1

86626559

GUARD

End, RH

1шт.

2

86643381

GUARD

Dark grey, Installed in front of the augers

10шт.

3

86705250

GUARD

Dark grey, Installed in front of the rotor

17шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

3

86643381

GUARD

Dark grey, Installed in front of the rotor

17шт.

DUAL CAM PICK-UP

1шт.

3

87055363

GUARD ASSY.

Dark grey, Installed in front of the rotor

17шт.

SINGLE CAM PICK-UP

1шт.

4

86625888

GUARD

End, LH

1шт.

5

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

Type F

1шт.

6

87055082

SPROCKET

18T, RC 50, Optional

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

INCREASES PICK-UP REEL SPEED

1шт.

6

87725037

SPROCKET

18T, RC 50, Standard

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

7

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

2шт.

8

87641197

SPROCKET

13T, RC 50

2шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

8

87026284

SPROCKET

13T

2шт.

9

87641160

SPROCKET

48T, RC 50

2шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

9

86624713

SPROCKET

48T, RC 50

2шт.

10

87741470

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, Optional heavy duty, RC 50, 100 Pitches, Includes connecting link 86537460

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

10

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, RC 50, 100 Pitches, Chrome, Includes connecting link 86537460

1шт.

SINGLE CAM PICK-UP

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

11

9849661

CHAIN

Roller, RC 50, 5/8"-pitch, 76 Pitches, Includes connecting link 42472

1шт.

SINGLE CAM PICK-UP

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

12

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

13

574844

BALL BEARING,25.4mm ID x 52mm OD x 15mm W

Pick-up drive shaft

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

14

87106572

FLANGE

2шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

15

38766

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

16

87050285

FLOOR,260mm W x 1150mm L, Polyurethane

Floor, Plastic

1шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

17

86620026

FLANGED BEARING

12шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

17

2978130

LINER

12шт.

18

86594423

BEARING,28.6mm Hex x 72mm OD x 25mm W

6шт.

18

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

19

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

34шт.

DUAL CAM, EUROPE & R.O.W.

1шт.

20

87026273

SPROCKET

Overrun clutch

1шт.

21

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

2шт.

22

29860

PIN,12.7mm OD x 35mm L

2шт.
