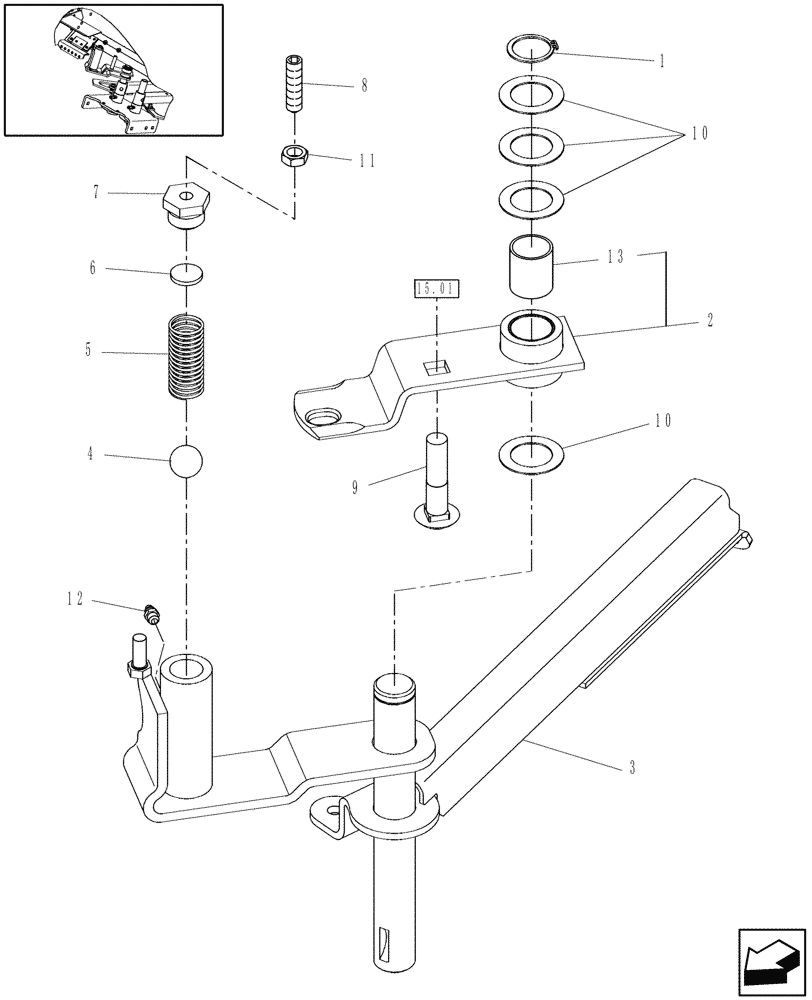

Запчасти Case IH RB464 (15.14[2]) - TWINE ARM, DRIVE BRACKET, P.I.N. Y9N043085 & AFTER (15) - KNOTTER /WRAPPER

1

25121

SNAP RING,#100, Ext

1шт.

2

86643718

ARM

1шт.

3

84161287

ARM

Drive

1шт.

4

602505

BALL

1шт.

5

86636632

SPRING

1шт.

6

603153

PLUG

1шт.

7

86636725

REDUCER,3/8" - 16

1шт.

8

87020316

SET SCREW,Hex Skt, 3/8" - 16 x 1 1/2"

Cup Pt

1шт.

9

280436

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1шт.

10

26129

WASHER,25.8mm ID x 39.69mm OD x 0.99mm Thk

(1-1/64" ID x 1-9/16" OD x .036")

4шт.

11

86509499

JAM NUT,3/8"-16, G2

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

1шт.

13

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

1шт.

MAINTENANCE PART

1шт.
