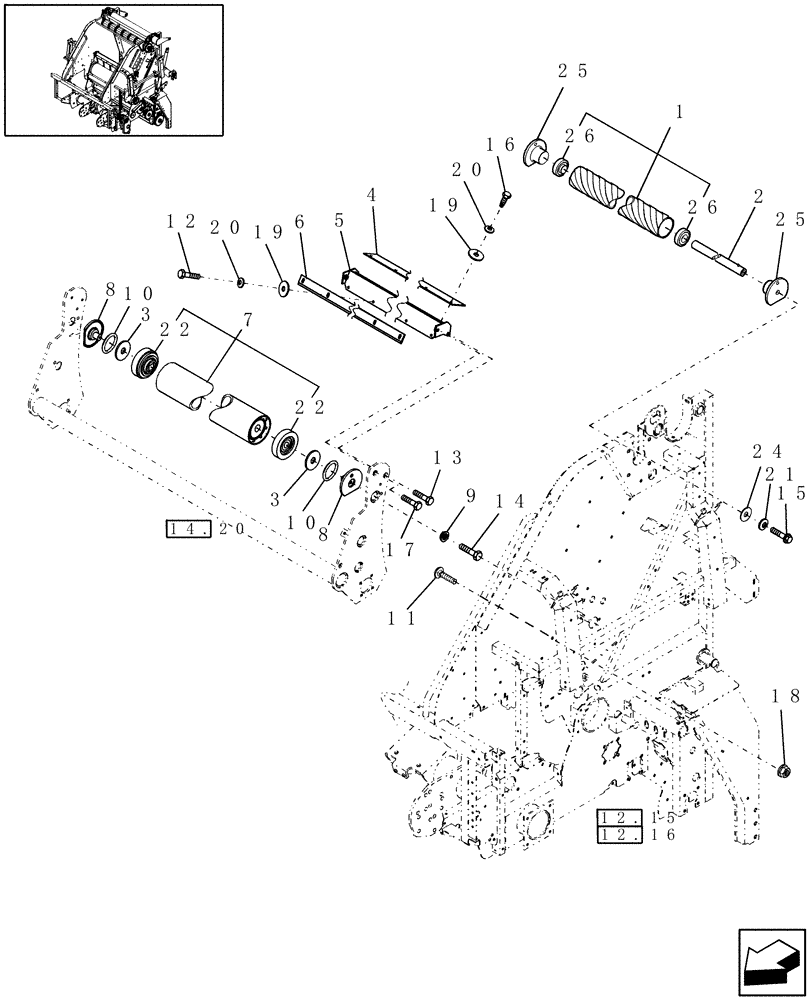

Запчасти Case IH RB464 (14.51) - FOLLOWER ROLL, SMOOTH & BACKWRAP ROLL (14) - BALE CHAMBER

1

9842286

ROLLER

Backwrap, Steel, Includes: (2) Ref. 26

1шт.

2

9823371

SHAFT

1шт.

3

9805640

SHIELD,38.3mm ID x 74.5mm OD x 3.5mm Thk

2шт.

4

87385929

RUBBER STRIP,1140mm L x 112mm W x 7.5mm Thk

1140 x 89

1шт.

MAINTENANCE PART

1шт.

5

86979982

ANGLE

1шт.

6

9845575

SCRAPER BLADE

1шт.

MAINTENANCE PART

1шт.

7

9829395

ROLLER

Follower

1шт.

8

86516311

SUPPORT

2шт.

9

87030468

HUB

2шт.

10

9841725

O-RING,0.21" Thk x 1.85" ID, -328, 40 Duro

M47.00 ID x 5.3

2шт.

11

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

15

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

16

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

8шт.

17

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

18

825-51412

FLANGE NUT,M12, Flg Ser

2шт.

19

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

Special

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

22

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

2шт.

MAINTENANCE PART

1шт.

23

NSS

NOT SOLD SEPARAT

Lock Collar

2шт.

24

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

25

86521602

SUPPORT

2шт.

26

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

MAINTENANCE PART

1шт.
