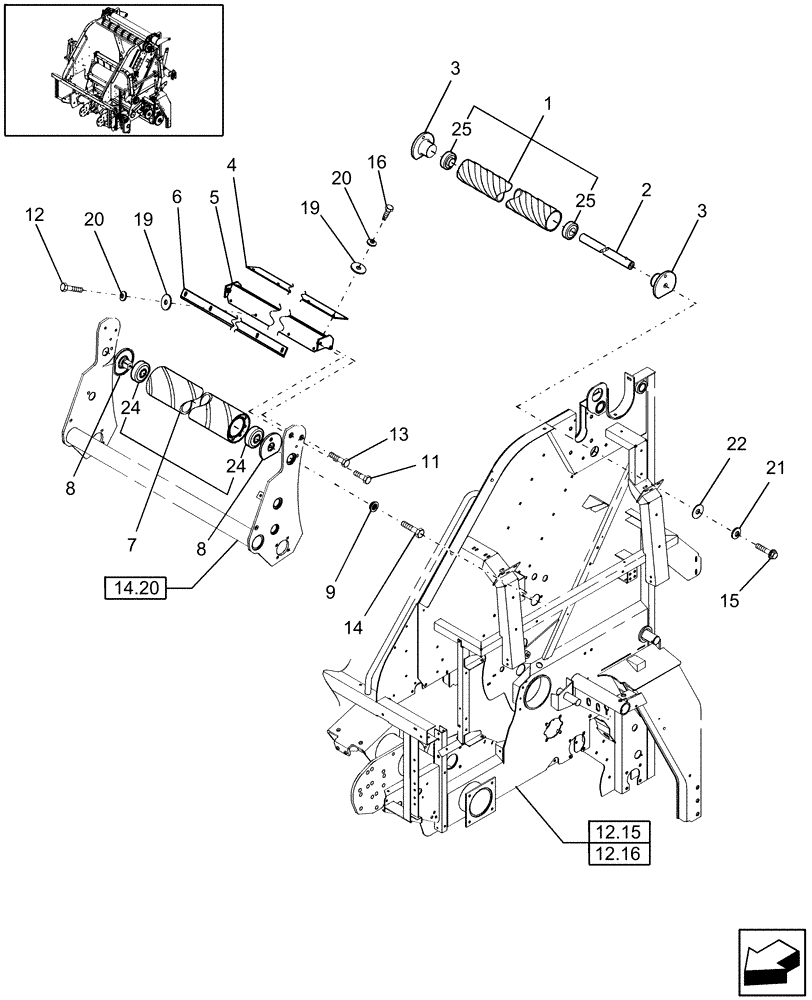

Запчасти Case IH RB464 (14.50) - FOLLOWER ROLL, LOOP & BACKWRAP ROLL (14) - BALE CHAMBER

1

86517669

ROLLER,101.6mm OD x 1176mm L

Includes: (2) Ref. 25

1шт.

2

9823371

SHAFT

2шт.

3

86521602

SUPPORT

2шт.

4

87385929

RUBBER STRIP,1140mm L x 112mm W x 7.5mm Thk

1140 x 89

1шт.

MAINTENANCE PART

1шт.

5

86979982

ANGLE

1шт.

6

86626880

SCRAPER BLADE

1шт.

MAINTENANCE PART

1шт.

7

86565880

ROLLER

Sledge Follower, Includes: (2) Ref. 24

1шт.

8

86553395

SUPPORT

2шт.

9

87030468

HUB

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

15

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

16

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

8шт.

19

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

Special

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

22

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

23

NSS

NOT SOLD SEPARAT

Lock Collar

2шт.

24

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

2шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

25

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

2шт.

MAINTENANCE PART

1шт.
