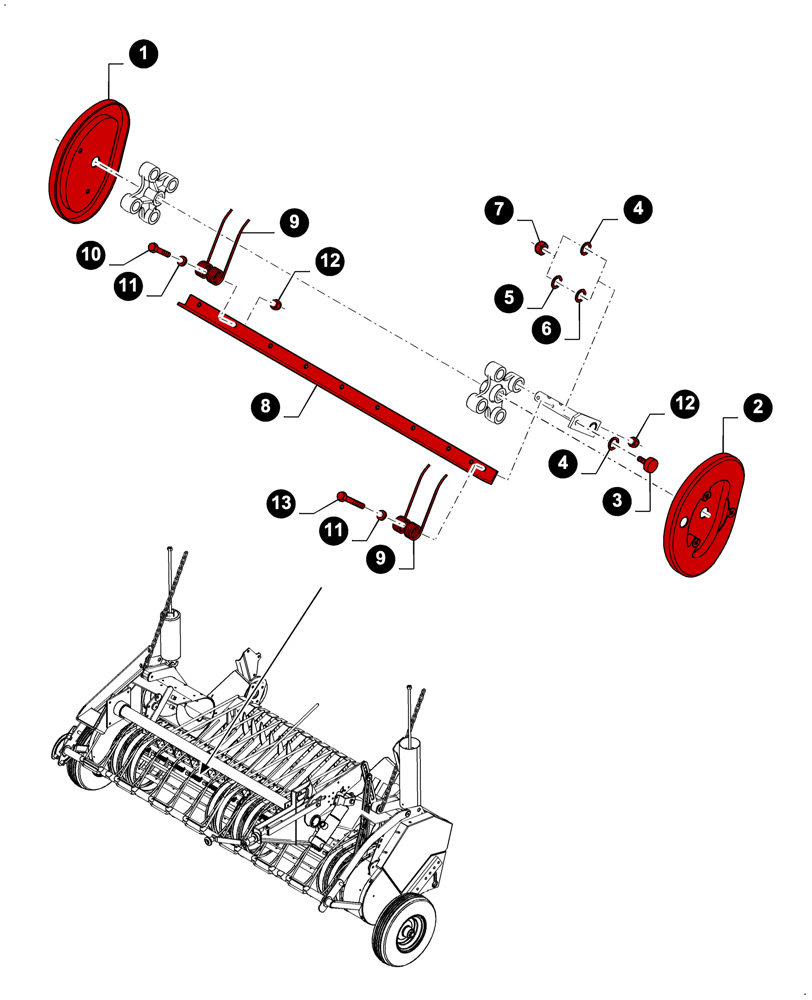

Запчасти Case IH RB464 (00.00RB206) - MAINTENANCE PARTS, 1.5 M WIDE PICK-UP REEL (00) - GENERAL

1

86634528

CAM

RH

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

2

86634545

CAM

LH

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

3

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

3

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

4

703960

WASHER

1-1/4" OD, Hardened

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

5

688917

WASHER

1-3/4" OD

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

6

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

7

88130

NUT,1/2"-20, GC

4шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

7

88130

NUT,1/2"-20, GC

8шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

8

86628669

ANGLE BAR

4шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

9

86551419

FINGER

Pick-up

48шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

44шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

11

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Hardened, 13/32"

48шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

12

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.

13

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

1.5 M WIDE SINGLE CAM PICK-UP

1шт.

1.5 M WIDE DUAL CAM PICK-UP

1шт.
