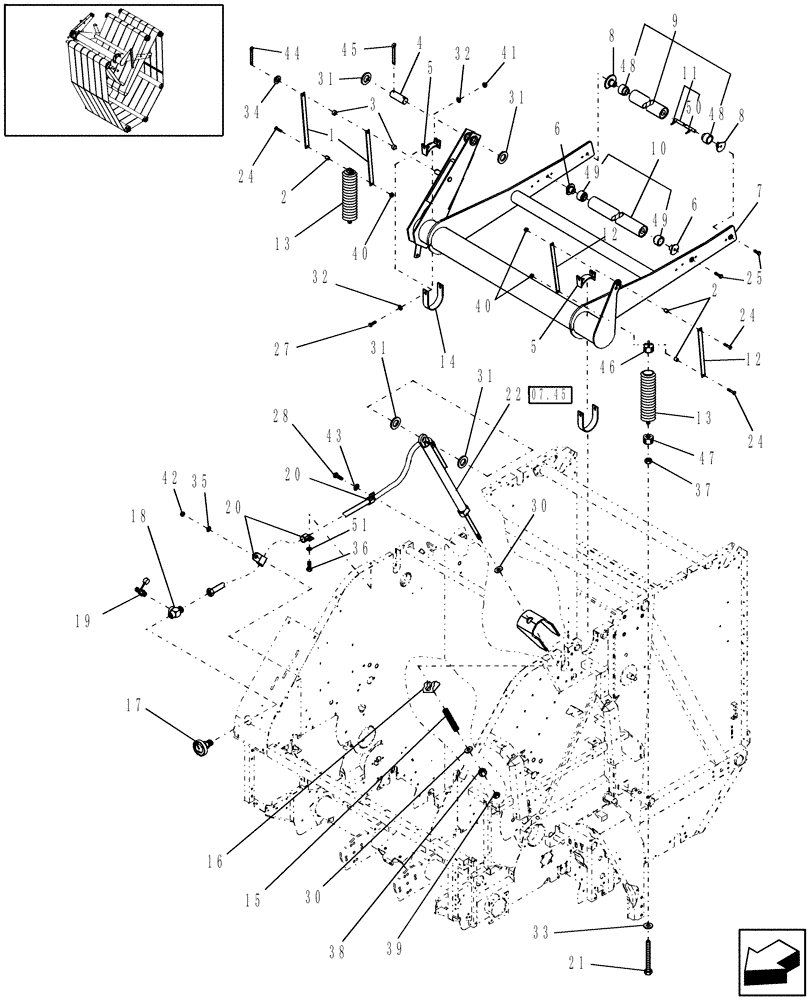

Запчасти Case IH RB464 (14.31) - BELT TENSION (14) - BALE CHAMBER

1

86637229

LINK,489mm L

2шт.

2

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

.86", Heat Treated

3шт.

3

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

.66" L

2шт.

4

86637228

PIN,38.1mm OD x 91.5mm L

1шт.

5

86636552

BEARING CAP

2шт.

6

86516321

SUPPORT

2шт.

7

87644300

ARM

Take-Up

1шт.

8

86516322

SUPPORT

2шт.

9

86500663

ROLLER,114.3mm OD x 1145mm L

Rear Serpentine

1шт.

10

9842288

ROLLER,88.9mm OD x 1142mm L

Front Serpentine

1шт.

11

9823372

SHAFT,1135mm L

1шт.

12

86978164

LINK,520mm L

2шт.

13

621339

SPRING

Use W/ Ref. 46 & 47

2шт.

14

9617265

BAND

2шт.

15

9846489

SPRING,Compression, 1.81" OD x 9.44" L

1шт.

16

226131

PIVOT

1шт.

17

857072

GAUGE

3,000 PSI, Bale Density

1шт.

18

86627339

HYD CONNECTOR

-04, Female, NPTF

1шт.

19

9845229

COUPLING

Male

1шт.

Female Pipe Coupler is 9845231. Refer to Repair Manual.

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

21

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

22

0C

ORDER COMPONENTS

Bale Tension Hydraulics

1шт.

24

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

3шт.

25

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

Cap, HH, CL 8.8 P M12 x 30, 6.5 Head Height

4шт.

27

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

28

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

2шт.

30

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

Hardened, .164" Thk

2шт.

31

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1-17/32" ID x 2-3/8" OD

4шт.

32

495-11053

WASHER,1/2", SAE

8шт.

33

495-21081

WASHER,3/4"

2шт.

34

495-11106

WASHER,1", SAE

1шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

36

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

37

280954

NUT,3/4"-10, G5

2шт.

38

9849647

NUT,7/8"-9, G5

1шт.

39

87314

JAM NUT,Jam, 7/8"-9, G2

1шт.

40

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

41

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

42

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

43

495-21038

WASHER,5/16"

2шт.

44

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

45

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

46

854482

SPRING NUT

Spring, Use W/ Ref. 13

2шт.

47

143672

SPRING NUT

Spring, Use W/ Ref. 13

2шт.

48

86500662

BEARING ASSY

2шт.

MAINTENANCE PART

1шт.

49

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

MAINTENANCE PART

1шт.

50

838-5526

LOCK PIN,M5 x 26, Slotted

1шт.

51

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.
