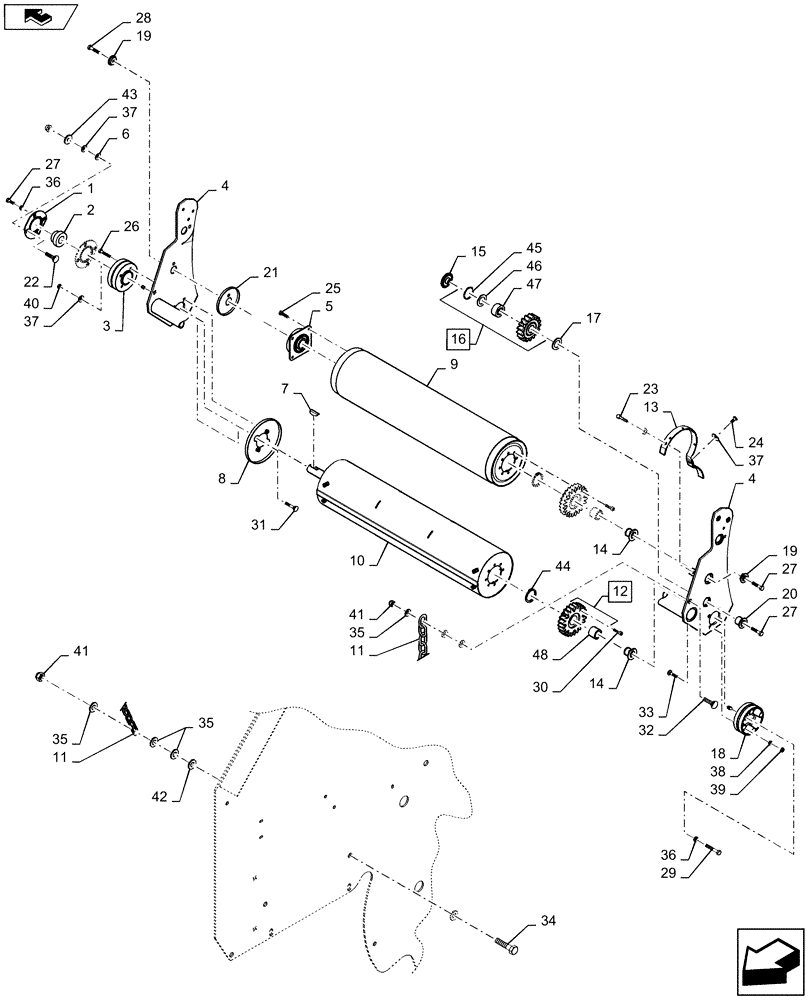

Запчасти Case IH RB464 (14.20) - SLEDGE (14) - BALE CHAMBER

1

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

Bearing

2шт.

2

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

& Collar

1шт.

3

86636673

HUB

RH

1шт.

4

87644299

FRAME

Sledge

1шт.

5

9806396

SUPPORT

Incl in 6

3шт.

6

84415463

FLANGED BEARING

Incl 5

1шт.

7

170055

KEY

1шт.

8

87025815

SHIELD

1шт.

9

87390122

ROLL

Stripper

1шт.

9

87499903

ROLL

Hemp Stripper, Optional

1шт.

10

87611564

ROLL

Pivot

1шт.

11

86527218

CHAIN,378mm L

15"

1шт.

12

87052121

GEAR

Roll, 24T

2шт.

Bearing & Gear are Select-Fit. Bearing is Not Serviced Separately

1шт.

13

86619670

SHIELD

1шт.

14

9803325

SUPPORT

Dimple Roll

2шт.

15

9843939

CAP

1шт.

16

9806931

IDLER GEAR,17T

17T, Sledge Roll Drive, Incl 45 - 47

1шт.

17

86637157

SHIELD

1шт.

18

86636786

HUB

LH

1шт.

19

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

2шт.

20

86636893

BUSHING,27.18mm ID x 47.63mm OD x 34mm L

Bearing Mount

1шт.

21

87602972

SHIELD

1шт.

22

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

23

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

24

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

25

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

26

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

2шт.

27

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

5шт.

28

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

29

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

30

81972

HEX SOC SCREW,5/16" - 18 x 1-3/4"

16шт.

31

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

32

86516319

PLOW BOLT,7/16" - 14 x 1 3/4", Gr 5

1шт.

33

281004

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

4шт.

34

9824667

WASHER,60mm ID x 71mm OD x 2.7mm Thk

1шт.

35

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

36

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

5шт.

37

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

39

9628503

NUT,3/8"-16, G5

4шт.

40

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

41

87517

NUT,7/16"-14, GB

2шт.

42

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

43

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

1шт.

44

168104

SNAP RING,#177, Ext

2шт.

45

9824626

SNAP RING,2.812", Int, #283

1шт.

46

86637167

WASHER,61.2mm ID x 71.8mm OD x 2.7mm Thk

Hardened, M60

1шт.

47

9808112

BALL BEARING,34.99mm ID x 71.88mm OD x 25mm W

1шт.

48

NSS

NOT SOLD SEPARAT

Bearing

3шт.
