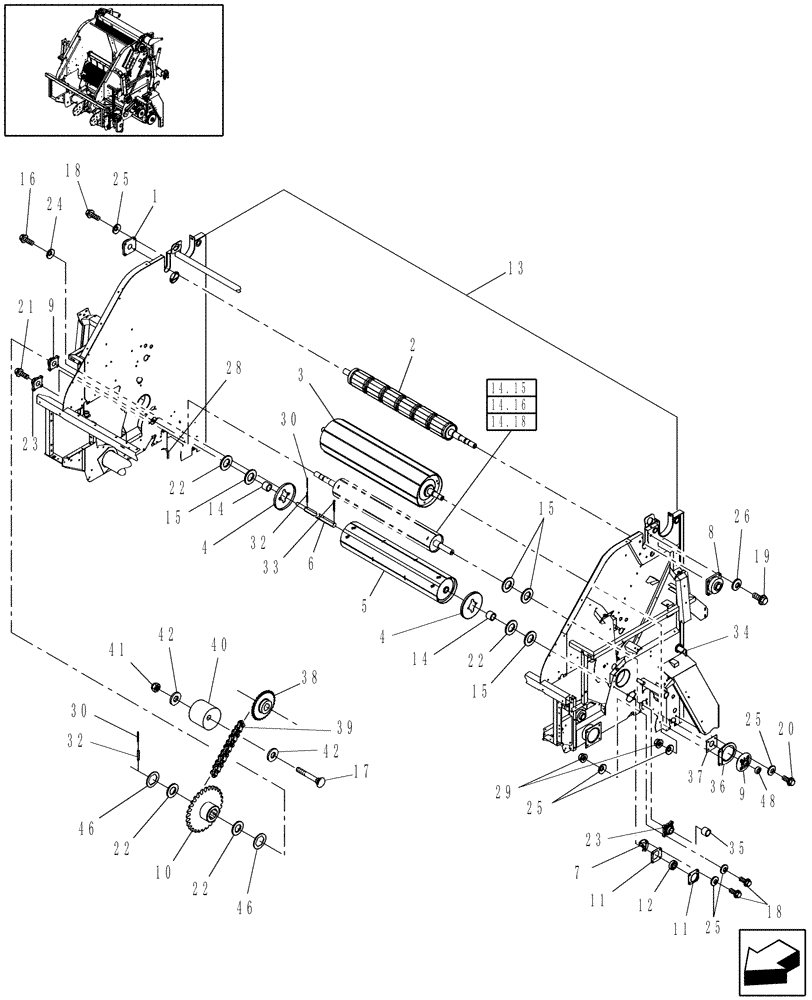

Запчасти Case IH RB464 (14.11[(2)]) - MAIN FRAME & ROLLS, STUFFER FEEDER (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1.772" ID

1шт.

MAINTENANCE PART

1шт.

2

86635441

ROLL

Drive, Keyed to YAN 43708

1шт.

NORTH AMERICA

1шт.

2

86635441

ROLL

Drive, Keyed

1шт.

EUROPE & R.O.W.

1шт.

2

87027869

ROLLER

Drive, Splined YAN, Start Serial: 47309

1шт.

NORTH AMERICA

1шт.

3

87398372

ROLLER ASSY.,304.5mm OD x 1293mm L

Floor, Includes: Square Rods

1шт.

4

87602845

SHIELD

Trash

2шт.

NORTH AMERICA

1шт.

4

84388614

SHIELD

Trash

2шт.

EUROPE & R.O.W.

1шт.

5

87660302

ROLL

Fixed Dimple

1шт.

NORTH AMERICA

1шт.

5

84388620

ROLL

Rib

1шт.

EUROPE & R.O.W.

1шт.

6

87056540

SHAFT

1шт.

7

87646213

ADAPTER

2шт.

8

86590752

BEARING ASSY

1.969" ID

1шт.

MAINTENANCE PART

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

MAINTENANCE PART

1шт.

10

87660324

SPROCKET

15T, RC80

1шт.

MAINTENANCE PART

1шт.

11

86837676

FLANGED BEARING

4шт.

MAINTENANCE PART

1шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

MAINTENANCE PART

1шт.

13

87630650

FRAME

Main, North America, Red, Twine

1шт.

13

87630652

FRAME

Main, North America, Red, Twine/Net

1шт.

13

87630651

FRAME

Main, Europe & R.O.W., Dk. Gray, Twine

1шт.

13

87630653

FRAME

Main, Europe & R.O.W., Dk. Gray, Twine/Net

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

1шт.

18

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

22шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

20

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

8шт.

21

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

23

86610638

BEARING ASSY,45mm ID

1.772" ID

2шт.

MAINTENANCE PART

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

32шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

87056525

WASHER

2шт.

28

86976003

SPACER

1шт.

29

86512497

FLANGE NUT,M12 x 1.75, Cl 10

4шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

87400

COTTER PIN,3/16" x 2"

1шт.

34

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

35

86976003

SPACER

2шт.

36

86602047

PIVOT PLATE

2шт.

37

86602143

WEAR PLATE

2шт.

MAINTENANCE PART

1шт.

38

87660325

SPROCKET,15T

1шт.

MAINTENANCE PART

1шт.

39

87627269

CHAIN (AG),80, 38 Links x 25.4mm = 965.2mm

1шт.

MAINTENANCE PART

1шт.

40

86514717

IDLER WHEEL

1шт.

MAINTENANCE PART

1шт.

41

100038

NUT,M12 x 1.75, Cl 8

1шт.

42

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

46

87056525

WASHER

2шт.

48

87384472

COLLAR

2шт.
