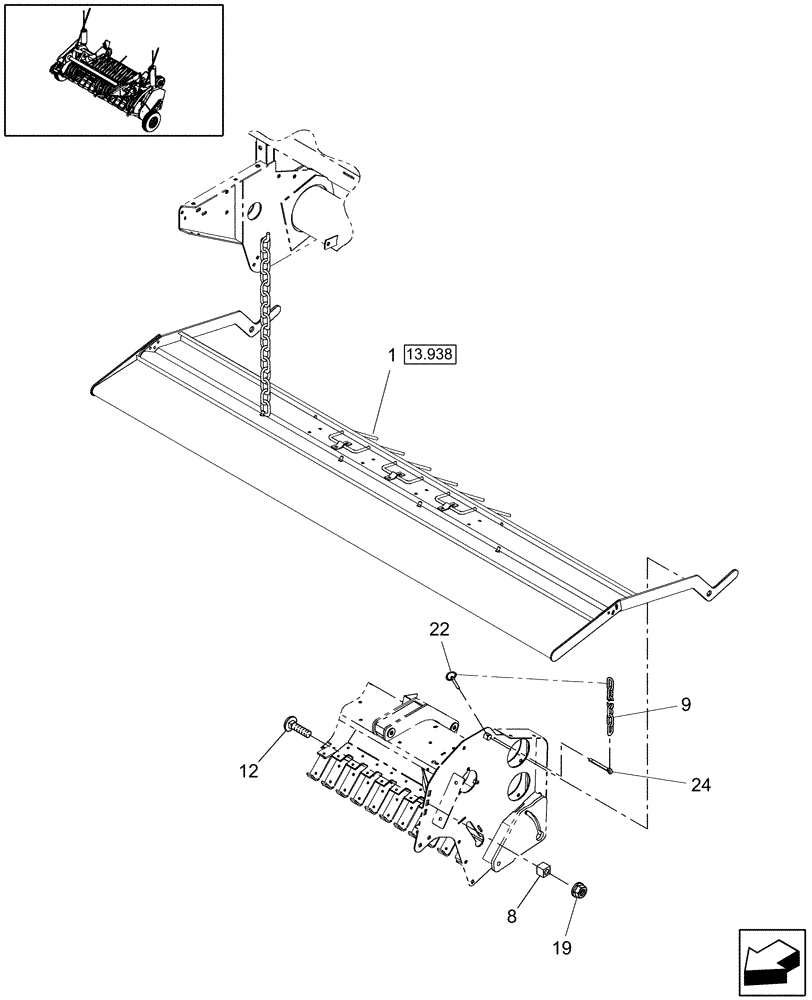

Запчасти Case IH RB464 (13.937) - 1.8M WIDE PICKUP, WINDGUARD PLATE, MOUNTING, EUROPE & R.O.W. (13) - FEEDER

1

0C

ORDER COMPONENTS

Windguard Plate

1шт.

8

44612

SPACER

2шт.

9

197559

CHAIN,9" L

2шт.

10

86619595

DECAL

2шт.

12

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

2шт.

19

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

22

86508947

LINCH PIN,18.8mm OD

Klik

2шт.

24

80756

COTTER PIN,1/8" x 3/4"

2шт.
