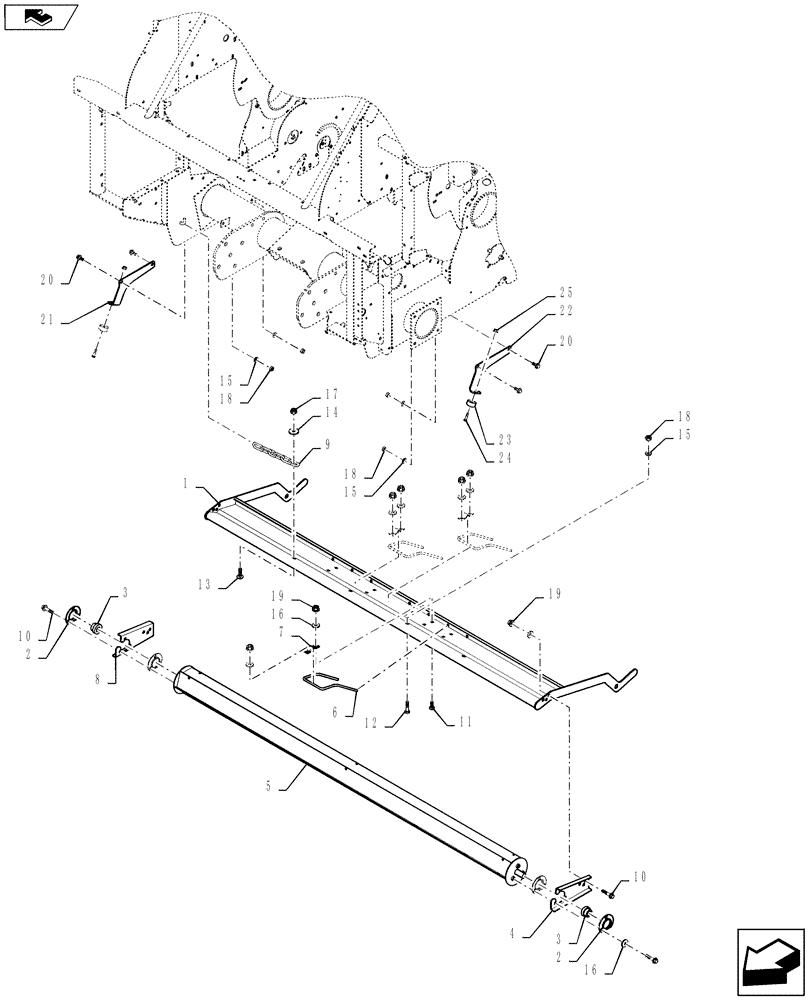

Запчасти Case IH RB464 (13.936) - 1.8M WIDE PICKUP, ROLLER WINDGUARD, EUROPE & R.O.W. (13) - FEEDER

1

87704734

WINDGUARD

1шт.

2

36853

HOSE

4шт.

3

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

4

87039203

ARM

1шт.

5

87532588

ROLLER,146mm OD x 2109.3mm L

1шт.

6

87040022

FINGER

3шт.

7

86637855

PLATE

3шт.

8

87039204

END PLATE

1шт.

9

87027237

CHAIN,18 Links x 37.2mm = 670mm L

2шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

11

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

13

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

14

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

18шт.

17

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

18

100016

NUT,M10 x 1.5, Cl 8

2шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

12шт.

20

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

21

47402554

STOP

1шт.

22

47402558

STOP

1шт.

23

87602893

BUMPER,6.4mm ID x 38mm OD x 19mm Thk

2шт.

24

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

25

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
