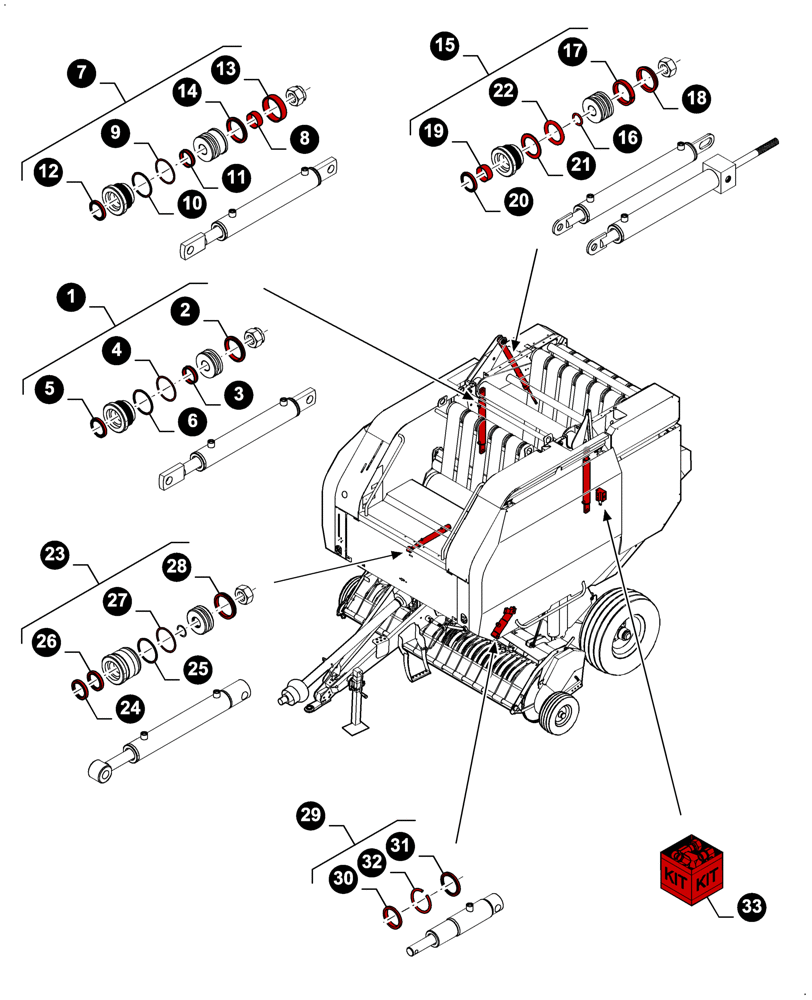

Запчасти Case IH RB464 (00.00RB204) - MAINTENANCE PARTS, SEAL KITS (00) - GENERAL

1

87025441

SEAL KIT

Kit, Hydraulic cylinder, Tailgate lift, Serial Range: (2-6)

1шт.

FOR RB454 ONLY

1шт.

2

86553483

SEAL

Piston, 3-piece

2шт.

FOR RB454 ONLY

1шт.

3

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

FOR RB454 ONLY

1шт.

4

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Double-lip, 1.50" OD x 1.25" ID x .250" Tk.

1шт.

FOR RB454 ONLY

1шт.

5

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod wiper

1шт.

FOR RB454 ONLY

1шт.

6

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

FOR RB454 ONLY

1шт.

7

87025443

SEAL KIT

Kit, Hydraulic cylinder, Tailgate lift, Serial Range: (8-14)

1шт.

FOR RB464 ONLY

1шт.

8

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

2.002" ID x .375" Thk.

1шт.

FOR RB464 ONLY

1шт.

9

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

FOR RB464 ONLY

1шт.

10

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Back-up, 1.772" ID x .043" Thk

1шт.

FOR RB464 ONLY

1шт.

11

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Double-lip, 1.50" OD x 1.25" ID x .250" Tk.

1шт.

FOR RB464 ONLY

1шт.

12

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod wiper

1шт.

FOR RB464 ONLY

1шт.

13

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

FOR RB464 ONLY

1шт.

14

86553483

SEAL

Piston, 3-piece

1шт.

FOR RB464 ONLY

1шт.

15

87028081

SEAL KIT

Kit, Hydraulic cylinder, Bale tension, Serial Range: (16-22)

2шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

17

771705

RING

Wear, 2.004" ID x .50" Thk

2шт.

18

86553483

SEAL

Piston, 3-piece

2шт.

19

9616363

SEAL,25.4mm ID x 31.5mm OD x 6.35mm Thk

2шт.

20

121189

OIL SEAL

Wiper, 1-1/4" OD x 1/8" Thick

2шт.

21

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

Back-up, 1.638" ID x .064" Thick

2шт.

22

NSS

NOT SOLD SEPARAT

1.6" ID x .210" Thk

2шт.

23

87029768

SEAL KIT

Hydraulic cylinder, Rotor cutter knife, Serial Range: (24-28)

1шт.

24

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

Wiper

1шт.

25

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-up, 1.266" ID x .043" Thk

1шт.

26

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

27

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

28

86605608

SEAL,31.34mm ID x 38.1mm OD x 4.75mm Thk

Piston

1шт.

29

87030514

SEAL KIT

Wiper, Hydraulic cylinder, Pick-up lift, Serial Range: (29-32)

1шт.

30

NSS

NOT SOLD SEPARAT

Seal

1шт.

31

2978421

O-RING

Seal, 1.50" ID x 1.90" OD

1шт.

32

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

33

9848054

SEAL KIT

(For hydraulic valve 9822383)

1шт.

NORTH AMERICA

1шт.

33

9848054

SEAL KIT

(For hydraulic valve 87677668)

1шт.

EUROPE & R.O.W.

1шт.

FOR RB454 ONLY

1шт.

33

9848054

SEAL KIT

(For hydraulic valve 9822383)

1шт.

EUROPE & R.O.W.

1шт.

FOR RB464 ONLY

1шт.
