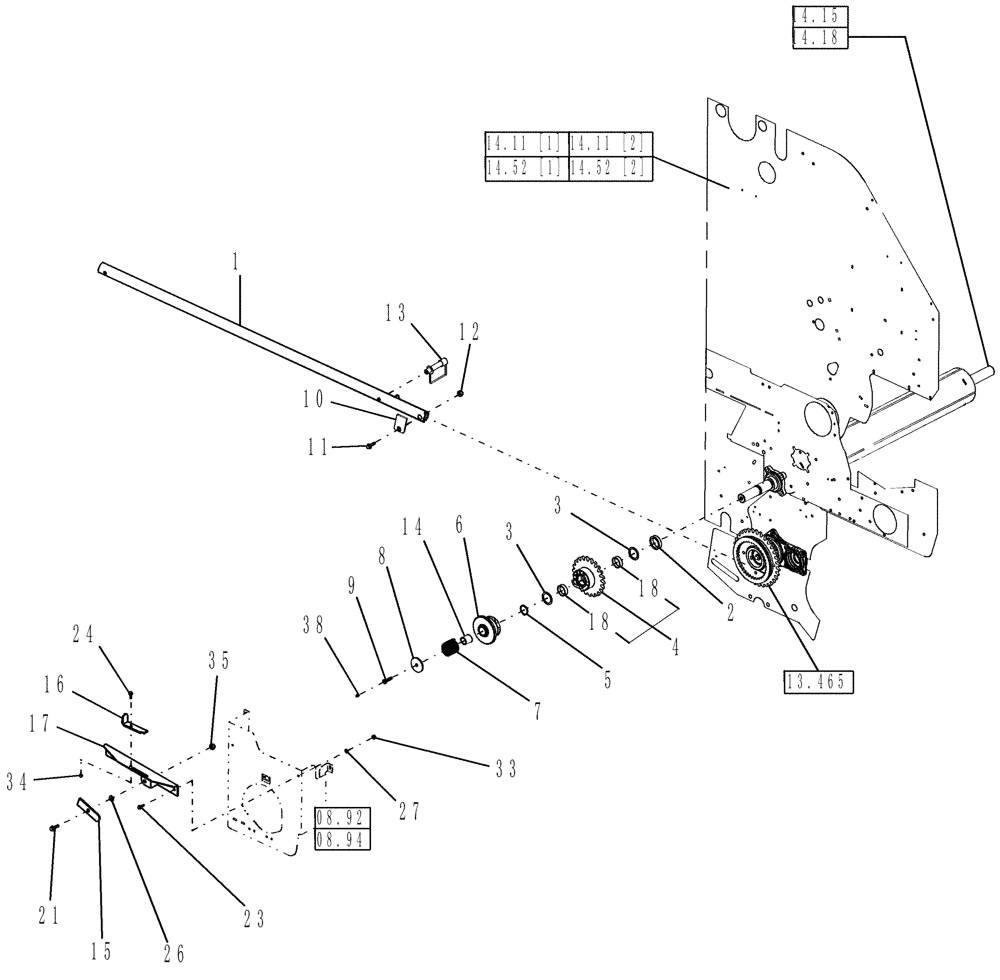

Запчасти Case IH RB464 (13.740[1]) - ROTOR REVERSE & CLUTCH, MECHANICAL, NORTH AMERICA (13) - FEEDER

1

86837576

SPECIAL WRENCH

1шт.

2

86976003

SPACER

1шт.

3

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, 60mm OD

1шт.

4

86705498

SPROCKET

22T & Clutch, Standard

1шт.

MAINTENANCE PART

1шт.

4

87045574

CLUTCH

24T & Clutch, Optional

1шт.

Increases Rotor Speed by 5%

1шт.

MAINTENANCE PART

1шт.

5

100-11162

SNAP RING,#162, Ext

1шт.

6

86705492

CLUTCH

Half

1шт.

7

196303

SPRING,2.44" OD x 4.5" L

1шт.

8

9829364

CAP COVER

1шт.

9

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lengthwise

1шт.

10

86837573

PLATE

1шт.

11

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

12

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

13

647695

PIN,7.94mm OD

Snap

1шт.

14

86601368

BUSHING

1шт.

15

87014170

LATCH

1шт.

16

87014172

STOP

1шт.

17

87014171

ANGLE

1шт.

18

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

2шт.

MAINTENANCE PART

1шт.

21

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

1шт.

23

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

26

721

WASHER,13.5mm ID x 22.2mm OD x 1.36mm Thk

Spacer, 7/8" OD

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

33

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

34

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

35

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

38

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
