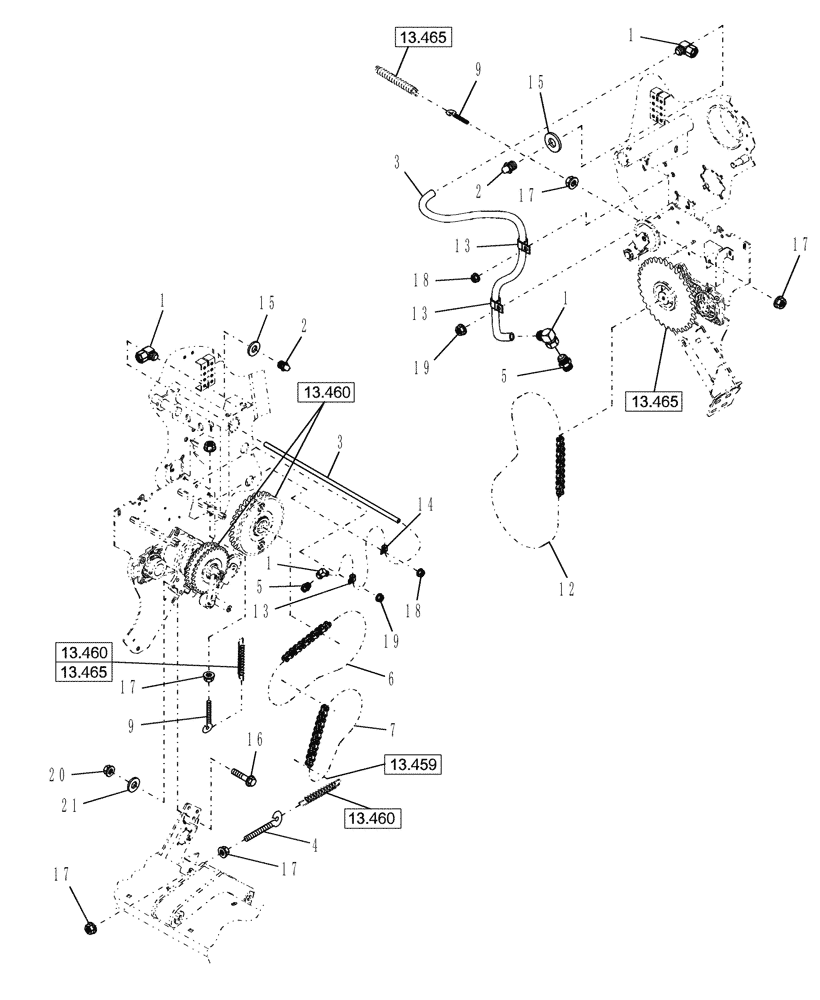

Запчасти Case IH RB464 (13.715) - ROTOR DRIVES, LH & RH (13) - FEEDER

1

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: Ref. 24 & 25

4шт.

2

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

2шт.

3

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

1шт.

4

86628567

EYEBOLT

G2, 3/8"-16 x 8-3/4"

1шт.

5

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

2шт.

6

86611957

CHAIN,RC60, 68 Links x 19.05mm = 1295.4mm

RC 60, 68 Pitches, Includes: Ref. 22

1шт.

MAINTENANCE PART

1шт.

7

86611994

CHAIN,60, 46 Links x 19.05mm = 876.3mm

RC 60, 46 Pitches, Includes: Ref. 22

1шт.

MAINTENANCE PART

1шт.

8

86566303

SPRING

1шт.

9

631201

EYEBOLT

3/8"-16 x 5-1/2"

2шт.

12

86611956

CHAIN,RC 80, 59 Links x 25.4mm = 1498.6mm

RC 80, Includes: Ref. 23 & Connecting Link

1шт.

MAINTENANCE PART

1шт.

13

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

2шт.

14

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

16

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

8шт.

17

425-286

FLANGE NUT,Flg, 3/8"-16, G5

4шт.

18

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

19

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

20

825-1412

NUT,M12, Cl 8

8шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

22

84554742

2шт.

Not Illustrated

1шт.

22

84554742

2шт.

MAINTENANCE PART

1шт.

23

86977428

CONNECTING LINK

# 80 Offset

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

24

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

25

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.
