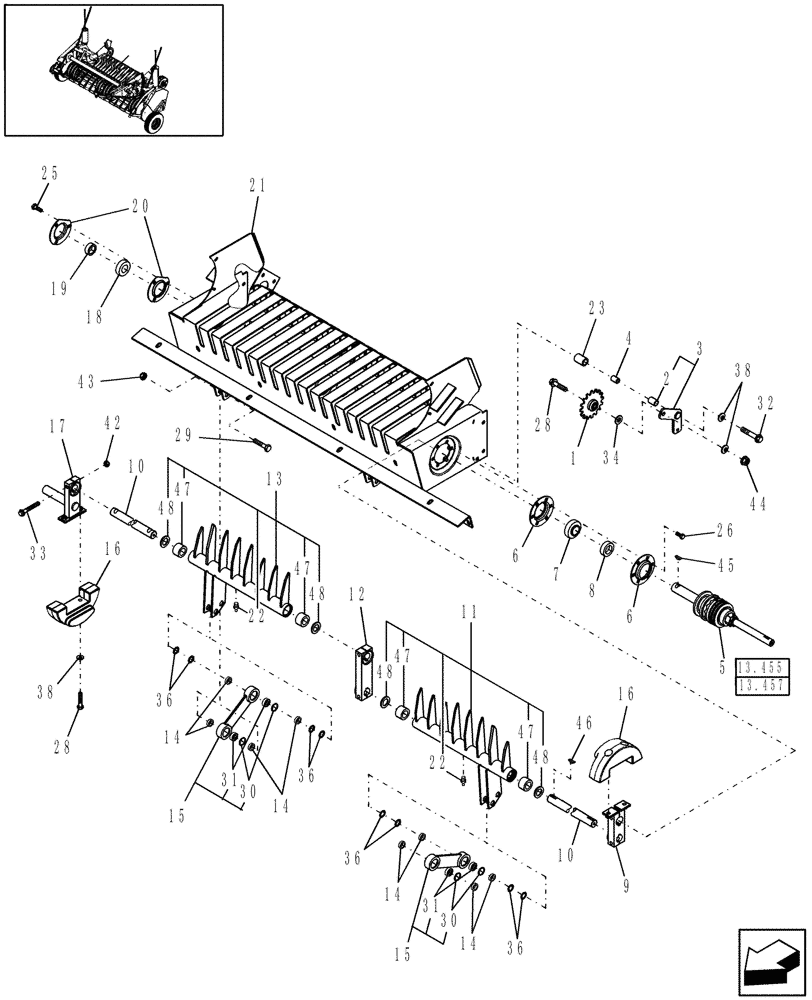

Запчасти Case IH RB464 (13.500) - STUFFER FEEDER (13) - FEEDER

1

165271

DRIVEN SPROCKET

Idler

1шт.

MAINTENANCE PART

1шт.

2

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.

3

86636654

ARM

1шт.

4

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

5

0C

ORDER COMPONENTS

Clutch, Jaw, Serial Range: -Y9N043084

1шт.

5

0C

ORDER COMPONENTS

Clutch, Radial Pin, Start Serial: Y9N043085

1шт.

6

86635012

FLANGE

Bearing

2шт.

MAINTENANCE PART

1шт.

7

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

MAINTENANCE PART

1шт.

8

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

MAINTENANCE PART

1шт.

9

87038896

CRANK

LH

1шт.

10

87040032

SHAFT

Stuffer, Ref. 10

2шт.

11

87041733

TUBE,47.66 mm ID x 511.1, 134.4 mm L

LH

1шт.

12

87038893

CRANK

1шт.

13

87041734

TUBE,47.66 mm ID x 511, 134.4 mm L

RH

1шт.

14

718013

SPACER

8шт.

15

86634527

ARM

2шт.

16

86627115

WEIGHT

Counter

2шт.

17

87038899

CRANK

RH

1шт.

18

557995R11

COLLAR

Locking, Includes: Set Screw

1шт.

MAINTENANCE PART

1шт.

19

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

MAINTENANCE PART

1шт.

20

87758678

FLANGE

2шт.

MAINTENANCE PART

1шт.

21

87042289

FRAME ASSY

Stuffer Feeder

1шт.

22

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

23

86705271

SPACER,13.5mm ID x 25.4mm OD x 34mm L

1шт.

24

87634130

COVER

1шт.

25

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

26

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

28

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

29

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

30

100-21175

SNAP RING,1.75", Int, #175

4шт.

31

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

4шт.

MAINTENANCE PART

1шт.

32

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

33

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

6шт.

34

495-11053

WASHER,1/2", SAE

1шт.

36

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

8шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

41

100016

NUT,M10 x 1.5, Cl 8

, Start Serial: Y9N043085

1шт.

42

412672

NUT,Hex, M12 x 1.75, Cl 10

5шт.

43

232-41412

LOCK NUT,3/4"-10, GC

4шт.

44

825-1412

NUT,M12, Cl 8

1шт.

45

393599

SET SCREW,M10 x 25mm, Cl 12.9

, Start Serial: Y9N043085

1шт.

46

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

4шт.

47

87038966

BUSHING,220mm ID x 270mm OD x 93mm L

4шт.

MAINTENANCE PART

1шт.

48

9609085

SEAL

4шт.

49

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

3/ARшт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

50

87346700

ARM

Idler

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

51

87470734

SPACER

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

52

84173842

SHAFT

, Start Serial: Y9N043085

1шт.
