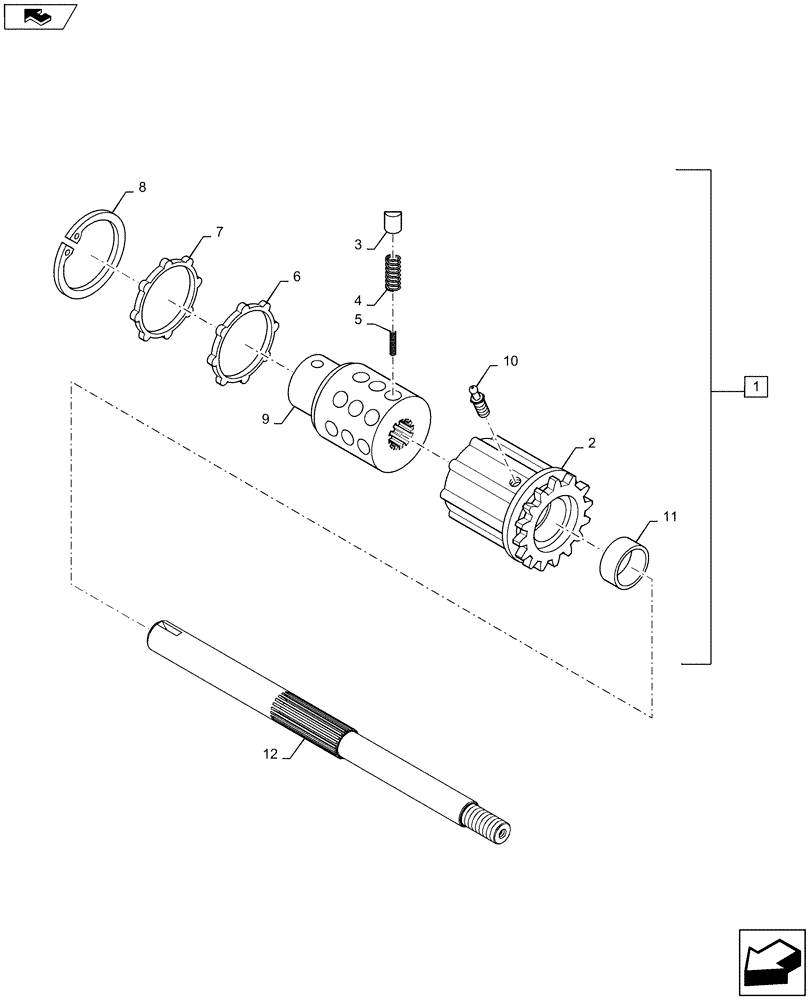

Запчасти Case IH RB464 (13.454) - 1.8M & 2M WIDE PICKUP, STUFFER FEEDER, RADIAL PIN CLUTCH, P.I.N. Y9N043085 & AFTER (13) - FEEDER

1

87623182

CLUTCH

Radial Pin

1шт.

MAINTENANCE PART

1шт.

2

NSS

NOT SOLD SEPARAT

Clutch Housing

1шт.

3

700703406

CAM

21шт.

4

386510

SPRING,Compression, 13mm OD X 13.2mm L

Outer

21шт.

5

386511

SPRING,Compression, 7mm OD x 13.2mm L

Inner

21шт.

6

428144

SEALING RING

Ring

1шт.

7

80411960

RING

Thrust

1шт.

8

300633

SNAP RING,M80, Internal

1шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

84447449

LUBE NIPPLE,M8.2 x 1

1шт.

11

NSS

NOT SOLD SEPARAT

Bushing

1шт.

12

84173842

SHAFT

1.8M Pickup

1шт.

12

84173847

SHAFT

2.0M Pickup

1шт.
