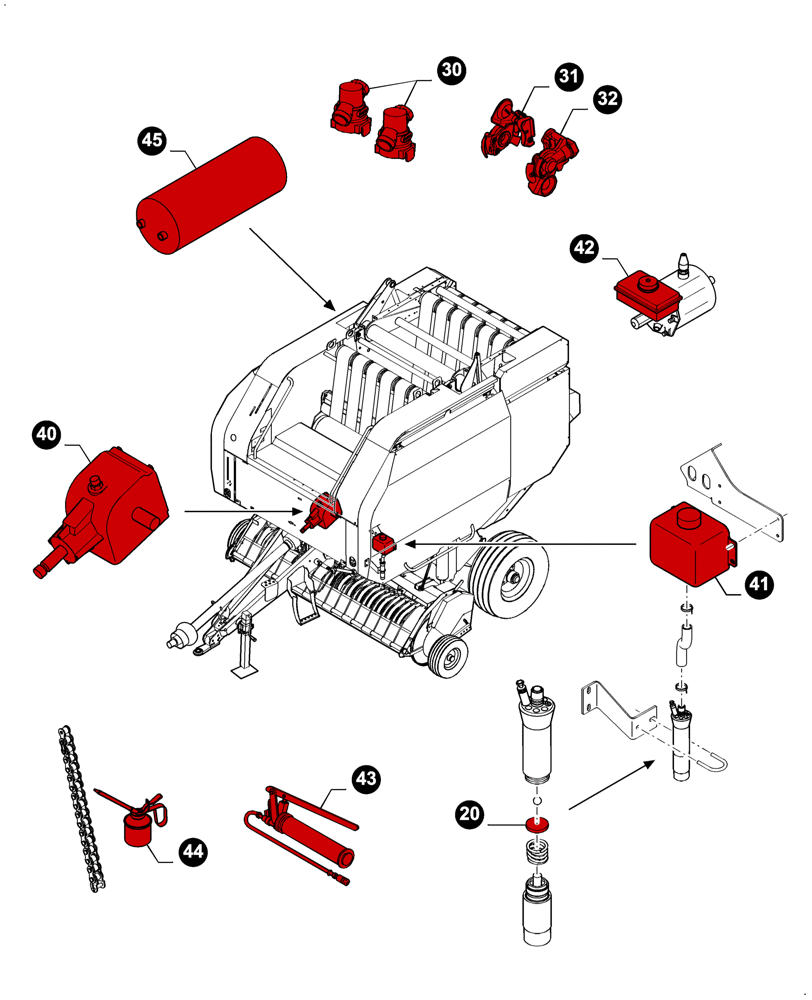

Запчасти Case IH RB464 (00.00RB201) - MAINTENANCE PARTS, FILTERS & CAPACITIES (00) - GENERAL

- LUBE OIL FILTERS -

1шт.

20

9847030

FILTER

Screen, Lubrication oiler pump

1шт.

- AIR FILTERS -

1шт.

30

9512545

AIR FILTER

Cartridge, Air brake line filter, Pneumatic brakes

2шт.

ANNUALLY

1шт.

DAMAGED FILTER CARTRIDGES MUST BE REPLACED

1шт.

31

9512537

COUPLING BLOCK

Air filter, Brake control line, Pneumatic brakes

1шт.

ANNUALLY

1шт.

YELLOW

1шт.

32

9512546

COUPLING BLOCK

Air filter, Compressed air supply, Pneumatic brakes

1шт.

ANNUALLY

1шт.

RED

1шт.

- CAPACITIES -

1шт.

40

Main drive gearbox oil - 540 rpm (Qty. in liters), (22 oz) - CASE Akcela 135H EP Gear Lube SAE 80W-90

1.79шт.

AFTER THE FIRST 50 HOURS

1шт.

ANNUALLY OR EVERY 20000 BALES OR 1000 HOURS

1шт.

41

Drive chain oiler reservoir (Qty. in liters), (0.79 US gallons): Reservoir capacity - CASE Akcela No. 1 Engine Oil SAE 10W-30

3шт.

42

Pneumatic brakes circuit oil tank (Qty. in liters), (0.12 US gallons): Reservoir capacity - CASE Akcela LHM Fluid

1шт.

ANNUALLY OR EVERY 1000 HOURS

1шт.

43

Grease - CASE Akcela Premium Grease EP-2

1шт.

44

Chain oil - CASE Akcela No. 1 Engine Oil SAE 10W-30

1шт.

45

Pneumatic brakes air reservoir - (Qty. in liters), (7.9 US gallons), 7.5 bar (110 psi), Air brake system

30шт.
