Запчасти Case IH RB464 (13.430[1]) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, EUROPE & R.O.W., P.I.N. Y9N043084 & PRIOR (13) - FEEDER

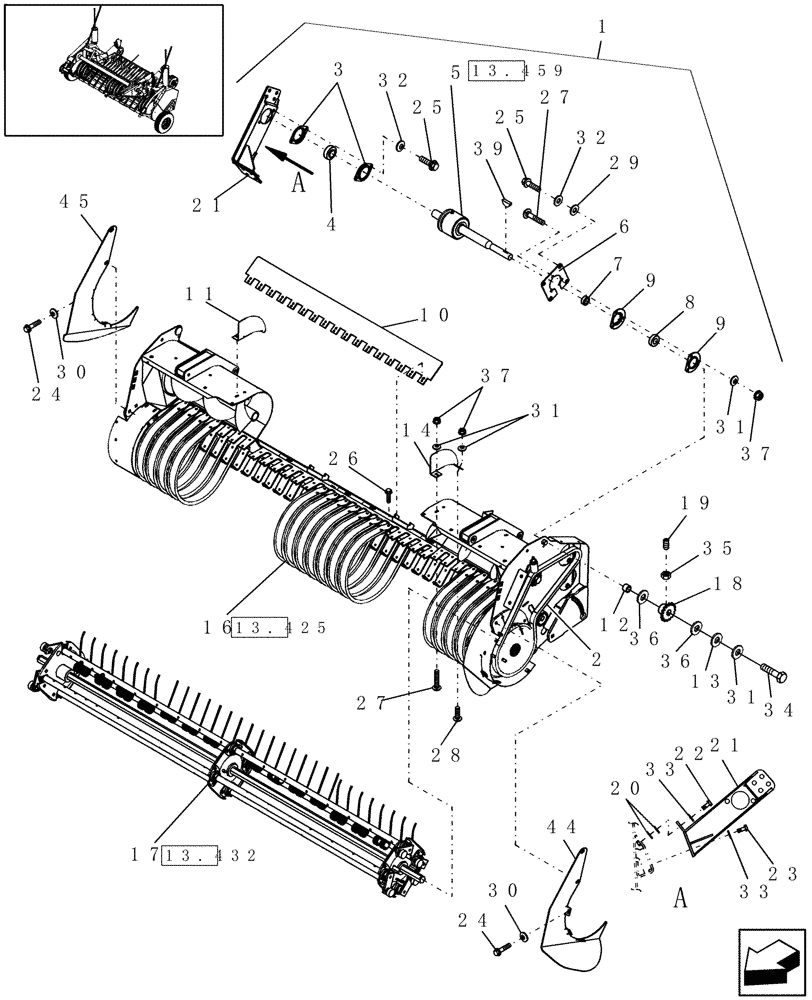

Схема запчастей Case IH RB464 - (13.430[1]) - 2M WIDE PICKUP W/ ROTOR & CLUTCH, EUROPE & R.O.W., P.I.N. Y9N043084 & PRIOR (13) - FEEDER
13.432
37
21
4
2
33
32
31
36
36
18
28
44
24
9
14
12
11
32
25
39
6
8
7
17
1
26
13
5
30
23
33
31
37
16
10
25
21
3
19
30
9
45
29
31
20
34
22
27
24
27
35
13.425
13.459

Артикул

Название

Примечание

Количество

1

87056302

ROTOR

2M Wide Pickup

1шт.

2

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

MAINTENANCE PART

1шт.

2

87741470

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, Optional Heavy Duty, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

MAINTENANCE PART

1шт.

3

165385

FLANGE,62 mm ID x 112.7 mm OD x 9.53 mm

Bearing

2шт.

MAINTENANCE PART

1шт.

4

617668R92

BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"

Ball

1шт.

MAINTENANCE PART

1шт.

5

0C

ORDER COMPONENTS

Overrun Clutch

1шт.

6

87042087

PLATE

1шт.

7

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

8

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

MAINTENANCE PART

1шт.

9

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

MAINTENANCE PART

1шт.

10

87050285

FLOOR,260mm W x 1150mm L, Polyurethane

1шт.

Refer to Service Bulletin 0412-H1

1шт.

Install Between Unattached Pickup Guards & Pickup Frame with Ref. 26.

1шт.

11

87045714

SHIELD

Upper, RH

1шт.

12

803349

HINGE

RH

2шт.

13

86610199

INSERT

Nut Threaded, M6

8шт.

14

87045713

SHIELD

Upper, LH

1шт.

16

0C

ORDER COMPONENTS

2M Wide Pickup

1шт.

17

0C

ORDER COMPONENTS

2M Tine Bar, Straight & Curved Pickup Tines

1шт.

18

87397998

SPROCKET

17T, RC 50, Standard

1шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

MAINTENANCE PART

1шт.

18

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

MAINTENANCE PART

1шт.

18

87602188

SPROCKET

17T, No Set Screw Required

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

MAINTENANCE PART

1шт.

19

300483

SET SCREW,M10 x 25mm

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

20

131405

SHIM

.025"

4шт.

21

87045521

LIFT ARM

LH

1шт.

22

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

23

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

24

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

14шт.

25

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

8шт.

26

87034817

SELF-TAP SCREW,HWH, 5/16" - 18 x 3/4"

34шт.

27

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

3шт.

28

811-8016

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 16mm, Cl 8.8

2шт.

29

495-21044

WASHER,3/8"

4шт.

30

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

14шт.

31

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

32

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

34

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

35

825-1410

NUT,M10, Cl 8

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

36

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

3шт.

37

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

39

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

44

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

45

84324676

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

Выбрано товаров: 60
