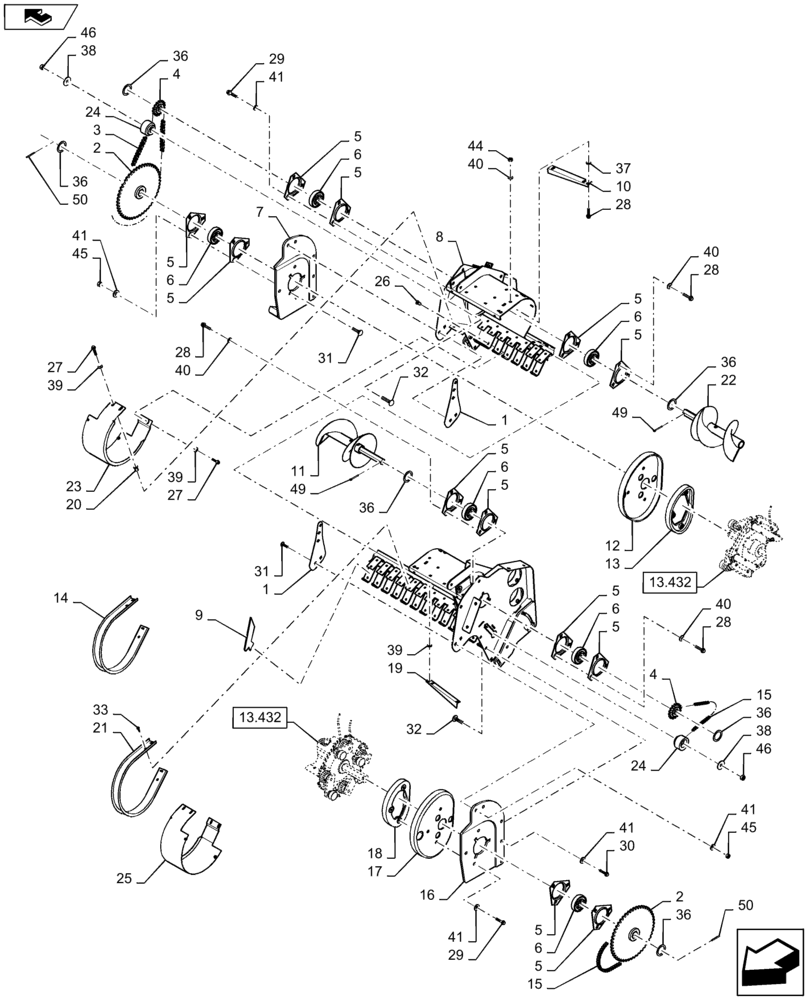

Запчасти Case IH RB464 (13.425) - 2M WIDE PICKUP W/ ROTOR (13) - FEEDER

1

47361794

MOUNT

, Start Serial: YCN174406

2шт.

2

86624713

SPROCKET

48T

2шт.

MAINTENANCE PART

1шт.

3

87023062

CHAIN (AG)

Roller, #50, 5/8"-pitch, 77 Pitches

1шт.

For use w/ 14T Sprocket

1шт.

MAINTENANCE PART

1шт.

3

9849661

CHAIN

Roller, #50, 5/8"-pitch, 76 Pitches, Includes Ref. 51

1шт.

For use w/ 13T Sprocket

1шт.

MAINTENANCE PART

1шт.

4

86624712

SPROCKET

14T

2шт.

MAINTENANCE PART

1шт.

4

87026284

SPROCKET

13T

2шт.

Use this Sprocket for Faster Auger Speed to Reduce Plugging.

1шт.

MAINTENANCE PART

1шт.

5

86620026

FLANGED BEARING

12шт.

6

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

6шт.

7

87054955

SUPPORT

RH

1шт.

8

87045639

FRAME ASSY

2M Dual Cam Wide Pickup

1шт.

9

87034858

FILLER

Filler, Optional

27шт.

Welding Required

1шт.

10

86598971

ANGLE

RH

1шт.

11

86635914

AUGER

LH, Serial Range: -YBN170943

1шт.

11

84355521

AUGER

LH, Start Serial: YBN170944

1шт.

12

87036227

CAM

RH, Outer

1шт.

MAINTENANCE PART

1шт.

13

87036226

CAM

RH, Inner

1шт.

MAINTENANCE PART

1шт.

14

86705250

GUARD

17шт.

Installed in Front of the Rotor

1шт.

MAINTENANCE PART

1шт.

15

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

MAINTENANCE PART

1шт.

15

87741470

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, Optional Heavy Duty, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

MAINTENANCE PART

1шт.

16

87054954

SUPPORT

LH

1шт.

17

87032200

CAM

LH, Outer

1шт.

MAINTENANCE PART

1шт.

18

87032003

CAM

LH, Inner

1шт.

MAINTENANCE PART

1шт.

19

86598970

ANGLE

LH

1шт.

20

86610198

INSERT,M6 x 1

Threaded, M6

4шт.

21

86643381

GUARD

14шт.

Installed in Front of the Augers, RH & LH

1шт.

MAINTENANCE PART

1шт.

22

86635916

AUGER

RH, Serial Range: -YBN170943

1шт.

22

84355439

AUGER

RH, Start Serial: YBN170944

1шт.

23

86626559

GUARD

RH

1шт.

MAINTENANCE PART

1шт.

24

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

2шт.

MAINTENANCE PART

1шт.

25

86625888

GUARD

LH

1шт.

MAINTENANCE PART

1шт.

26

86610199

INSERT

NUT Threaded, M6

4шт.

27

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

8шт.

28

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

18шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

31

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

12шт.

32

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

2шт.

33

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

90шт.

MAINTENANCE PART

1шт.

36

87022926

WASHER,35.05mm ID x 48.01mm OD x 2.14mm Thk

.075" Thick

1шт.

37

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

38

495-11066

WASHER,5/8", SAE

2шт.

39

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

34шт.

44

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

45

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

46

832-46416

NUT,M16 x 2, Cl 8

2шт.

49

14601770

LOCK PIN,M5 x 45, Slotted

, Serial Range: -YBN170943

2шт.

Both Ref. 49 & 51 are Used to Retain the Auger. Ref. 51 is Installed Inside Ref. 49

1шт.

49

300869

LOCK PIN,6mm OD x 40mm L, Slotted

, Start Serial: YBN170944

2шт.

50

88529

LOCK PIN,5.56mm OD x 44.45mm L, Slotted

2шт.

51

88422

LOCK PIN,1/8" x 1 3/4", Slotted

, Serial Range: -YBN170943

2шт.

Both Ref. 49 & 51 are Used to Retain the Auger. Ref. 51 is Installed Inside Ref. 49

1шт.

52

42472

CONNECTING LINK

1шт.

Not Illustrated

1шт.
