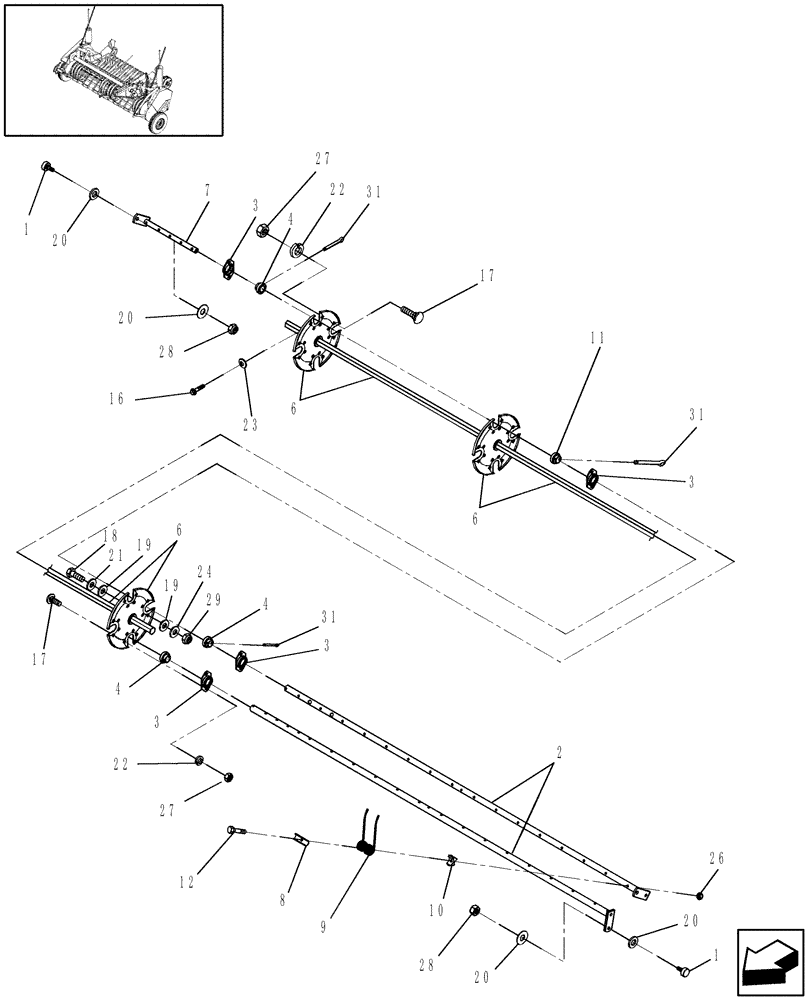

Запчасти Case IH RB464 (13.385[2]) - 1.8M DUAL CAM WIDE PICKUP, REEL, P.I.N. Y8N0388894 & AFTER (13) - FEEDER

1

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

8шт.

MAINTENANCE PART

1шт.

2

87732735

ARM

LH

4шт.

MAINTENANCE PART

1шт.

3

54695

BEARING HOUSING

12шт.

MAINTENANCE PART

1шт.

4

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

8шт.

MAINTENANCE PART

1шт.

6

87732304

BAR

1шт.

7

87732736

ARM

RH

4шт.

MAINTENANCE PART

1шт.

8

134921

BRACKET

56шт.

MAINTENANCE PART

1шт.

9

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

56шт.

MAINTENANCE PART

1шт.

10

84427925

TINE BAR

56шт.

MAINTENANCE PART

1шт.

11

87056792

BEARING,27.3mm ID x 47.09mm OD x 12.83mm W

4шт.

MAINTENANCE PART

1шт.

12

130891

BOLT,Tine, 5/16" - 18 x 2"

56шт.

MAINTENANCE PART

1шт.

16

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

17

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

24шт.

18

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

19

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

16/ARшт.

20

703960

WASHER

16шт.

MAINTENANCE PART

1шт.

21

26382

WASHER

8/ARшт.

22

80680

LOCK WASHER,3/8 0.381 CST ZND

24шт.

23

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

24

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

26

86629544

NUT,5/16” – 18, GR B

56шт.

MAINTENANCE PART

1шт.

27

9637692

NUT,3/8"-16, GB

24шт.

28

88130

NUT,1/2"-20, GC

8шт.

MAINTENANCE PART

1шт.

29

280374

NUT,Hex, 5/8" - 11, Gr 5

8шт.

31

136521

COTTER PIN,5.7mm OD x 44.45mm L

12шт.

MAINTENANCE PART

1шт.
