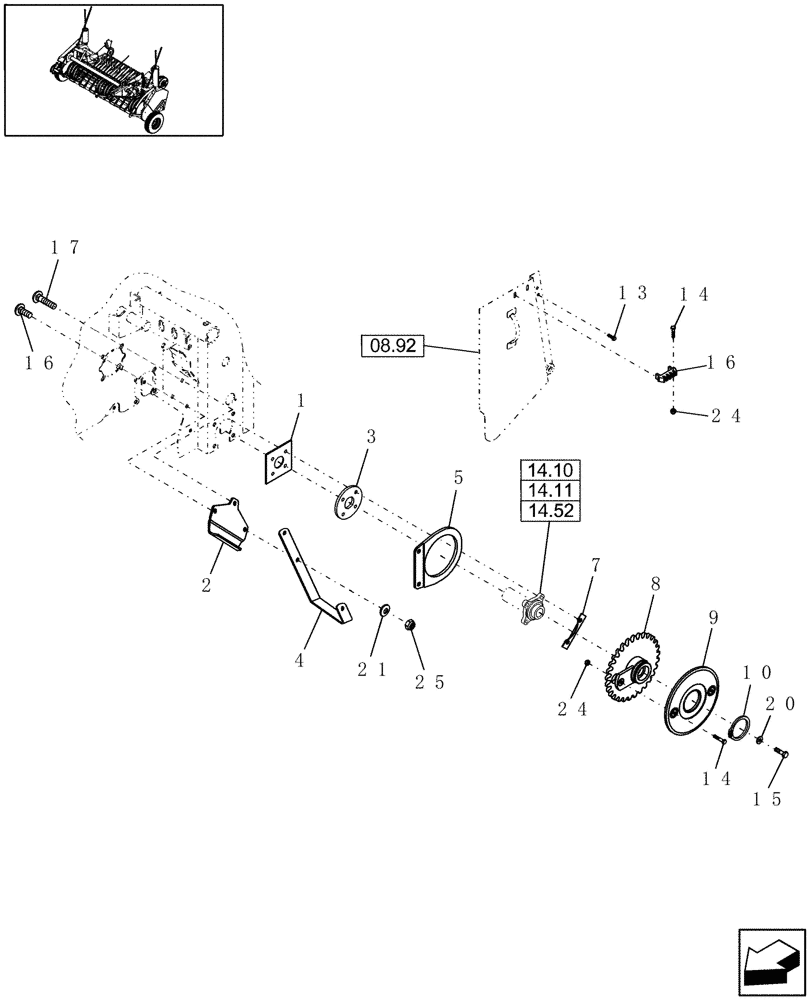

Запчасти Case IH RB464 (13.337) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER MOUNTING, EUROPE & R.O.W. (13) - FEEDER

1

86602143

WEAR PLATE

2шт.

2

86624254

STOP

2шт.

3

86602046

PLATE

2шт.

4

86900359

BRACKET

1шт.

5

86602047

PIVOT PLATE

2шт.

6

52367

HOLDER

Shearbolt

1шт.

7

86602446

ANGLE

2шт.

8

86616505

SPROCKET

29T, RC80

1шт.

MAINTENANCE PART

1шт.

9

86978871

SPROCKET

39T, RC60, Incl 11

1шт.

MAINTENANCE PART

1шт.

10

234592

SNAP RING,#300, Ext

1шт.

11

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.

Not Illustrated

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

14

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

3шт.

MAINTENANCE PART

1шт.

14

46402

SHEAR BOLT

HH, 5/16"-18 x 1-1/2"

3шт.

MAINTENANCE PART

1шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

16

811-10025

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8

4шт.

17

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

20

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

24

832-46408

NUT,M8 x 1.25, Cl 8

3шт.

MAINTENANCE PART

1шт.

25

825-1410

NUT,M10, Cl 8

6шт.
