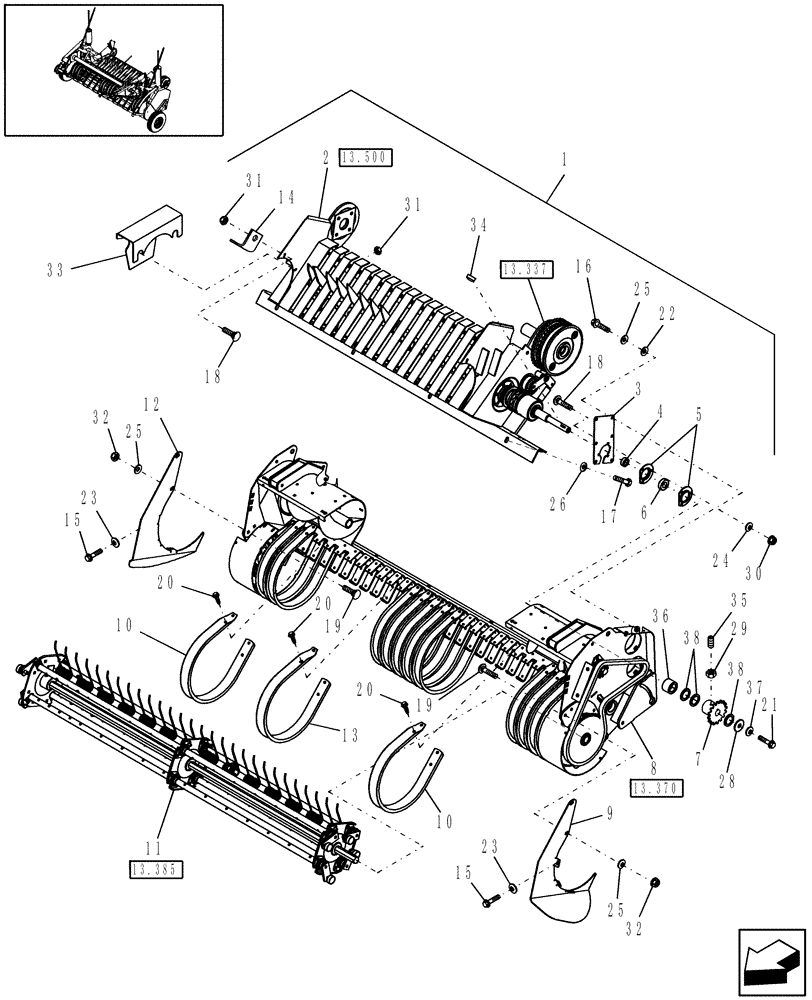

Запчасти Case IH RB464 (13.336) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, EUROPE & R.O.W. (13) - FEEDER

1

87606515

PICK-UP

1.8M Wide Dual Cam & Stuffer Feeder

1шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder, Dry Hay

1шт.

3

87042087

PLATE

, Serial Range: -Y9N043084

1шт.

3

84173517

PLATE

, Start Serial: Y9N043085

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw, Serial Range: -Y9N043084

1шт.

4

63266

COLLAR,30.187mm ID x 44.83mm OD x 16.26mm W

Locking, Includes: Set Screw, Start Serial: Y9N043085

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

, Serial Range: -Y9N043084

2шт.

MAINTENANCE PART

1шт.

5

87758679

FLANGED BEARING

, Start Serial: Y9N043085

2шт.

MAINTENANCE PART

1шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

, Serial Range: -Y9N043084

1шт.

MAINTENANCE PART

1шт.

6

63265

BALL BEARING,30.16mm ID x 62mm OD x 18mm W

, Start Serial: Y9N043085

1шт.

MAINTENANCE PART

1шт.

7

87602188

SPROCKET

17T, RC50, Standard, Serial Range: -Y9N043084

1шт.

MAINTENANCE PART

1шт.

7

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

MAINTENANCE PART

1шт.

7

87725036

SPROCKET

17T, RC50, Standard, Start Serial: Y9N043085

1шт.

MAINTENANCE PART

1шт.

8

0C

ORDER COMPONENTS

1.8M Dual Cam Wide Pickup

1шт.

9

87053734

GUARD

Flare, LH

1шт.

Optional for Improved Feeding

1шт.

10

86643381

GUARD

10шт.

MAINTENANCE PART

1шт.

11

0C

ORDER COMPONENTS

1.8M Dual Cam Spider

1шт.

12

84324676

GUARD

Flare, RH

1шт.

Optional for Improved Feeding

1шт.

13

87055363

GUARD ASSY.

1шт.

MAINTENANCE PART

1шт.

14

66463

BRACKET

, Serial Range: -Y9N043084

4шт.

15

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

16

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

17

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

18

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

19

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

15шт.

20

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

108шт.

MAINTENANCE PART

1шт.

21

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

22

495-21044

WASHER,3/8"

6шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Serial Range: -Y9N043084

3шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

, Start Serial: Y9N043085

1шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Serial Range: -Y9N043084

8шт.

25

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

, Start Serial: Y9N043085

9шт.

26

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

28

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

29

100016

NUT,M10 x 1.5, Cl 8

, Serial Range: -Y9N043084

2шт.

29

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

, Start Serial: Y9N043085

3шт.

Not Illustrated

1шт.

30

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

, Serial Range: -Y9N043084

3шт.

30

9804278

FLANGE NUT,M10 x 1.5, Cl 8

, Start Serial: Y9N043085

3шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

23шт.

32

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

33

87606515

PICK-UP

1шт.

Use Existing Hardware from Ref. 2.

1шт.

34

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

35

300483

SET SCREW,M10 x 25mm

, Serial Range: -Y9N043084

2шт.

36

87634130

COVER

1шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

38

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.
