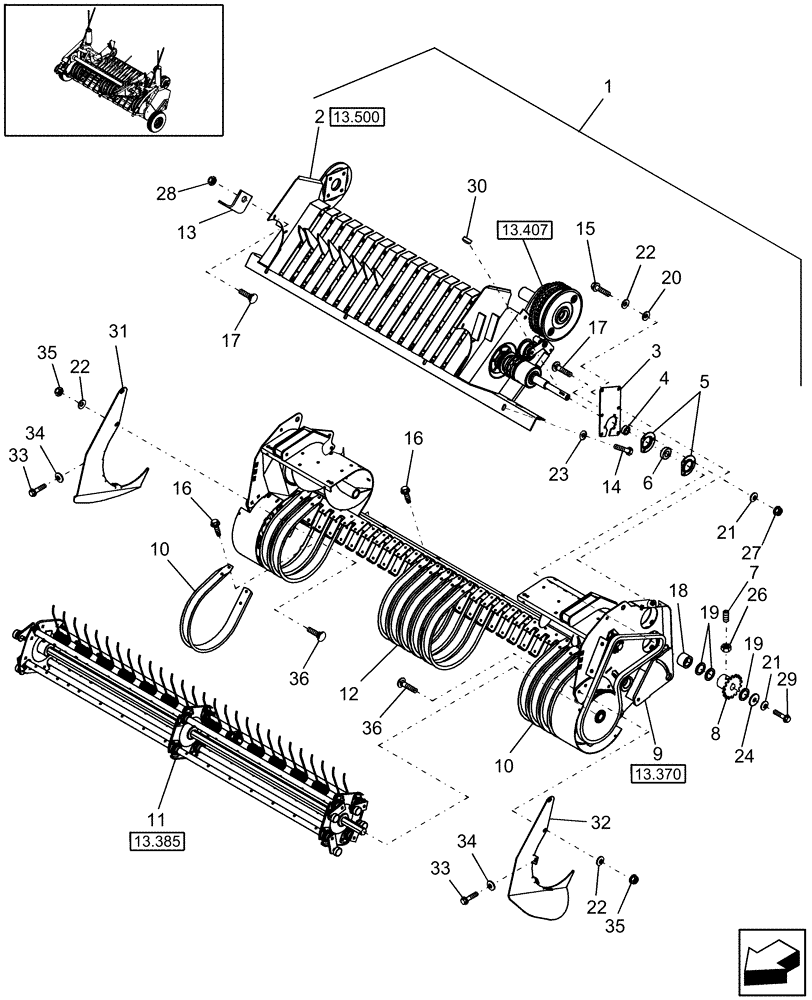

Запчасти Case IH RB464 (13.334) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

1

87606515

PICK-UP

1.8M Wide Dual Cam & Stuffer Feeder

1шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder

1шт.

3

87042087

PLATE

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

MAINTENANCE PART

1шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

MAINTENANCE PART

1шт.

7

300483

SET SCREW,M10 x 25mm

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

8

87397998

SPROCKET

17T, RC 50

1шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

MAINTENANCE PART

1шт.

8

87055082

SPROCKET

18T, RC 50, Optional

1шт.

Increases Pickup Reel Speed

1шт.

MAINTENANCE PART

1шт.

8

87602188

SPROCKET

17T, No Set Screw Required

1шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

MAINTENANCE PART

1шт.

9

0C

ORDER COMPONENTS

1.8M, Dual Cam Wide Pickup

1шт.

10

86643381

GUARD

10шт.

MAINTENANCE PART

1шт.

11

0C

ORDER COMPONENTS

1.8M, Dual Cam Reel

1шт.

12

87055363

GUARD ASSY.

17шт.

MAINTENANCE PART

1шт.

13

66463

BRACKET

4шт.

14

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

15

9804262

BOLT,M10 x 39.2mm, Cl 8.8

4шт.

16

87039762

SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"

108шт.

MAINTENANCE PART

1шт.

17

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

18

86640795

SPACER,25.65mm ID x 31.75mm OD x 20.06mm L

1шт.

19

245531

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

20

495-21044

WASHER,3/8"

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

24

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

1шт.

26

825-1410

NUT,M10, Cl 8

2шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

4шт.

29

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

30

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

31

84324676

GUARD

RH

1шт.

Optional for Improved Feeding

1шт.

32

87053734

GUARD

LH

1шт.

Optional for Improved Feeding

1шт.

33

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

35

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

36

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.
