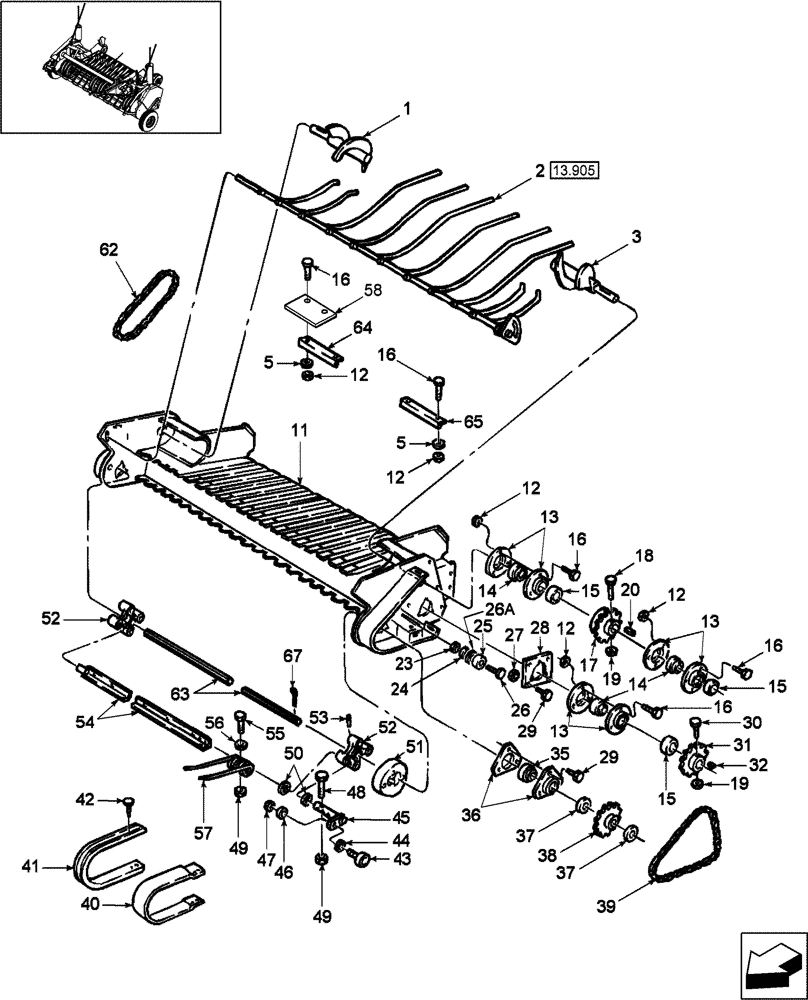

Запчасти Case IH RB464 (13.245) - 1.5M DUAL CAM WIDE PICKUP (13) - FEEDER

1

86637289

AUGER

RH

1шт.

2

86634560

ROD ASSY.

Windguard

1шт.

3

86636663

AUGER

LH

1шт.

5

495-11034

WASHER,5/16", SAE

5шт.

11

86837216

FRAME

Pickup

1шт.

12

825-5148

SERRATED NUT,M8, Flg Ser

19шт.

13

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

10шт.

MAINTENANCE PART

1шт.

14

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

3шт.

MAINTENANCE PART

1шт.

15

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

16

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

13шт.

17

86636650

DRIVEN SPROCKET

17T

2шт.

MAINTENANCE PART

1шт.

18

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

2шт.

19

86509499

JAM NUT,3/8"-16, G2

2шт.

20

86628576

KEY

1/4" Sq. x 1-1/4" Long

2шт.

21

9849661

CHAIN

Roller, #50, 5/8" Pitch, 76 Pitches

1шт.

42472

CONNECTING LINK

RC50, Cotter Style

1шт.

Not Illustrated

1шт.

25816

OFFSET LINK

RC50

3шт.

Not Illustrated

1шт.

23

825-1412

NUT,M12, Cl 8

3шт.

24

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

25

86514717

IDLER WHEEL

Nylon

2шт.

MAINTENANCE PART

1шт.

26

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

3шт.

495-21069

WASHER,5/8"

1шт.

Not Illustrated

1шт.

26a

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

27

825-51410

FLANGE NUT,M10, Flg Ser

20шт.

28

86636899

MOUNTING PLATE

1шт.

29

905-10020

BOLT,Hex Flg, M10 x 20mm

18шт.

30

84983

SET SCREW,3/8" x 1"

2шт.

31

86637156

DRIVEN SPROCKET

22T

1шт.

MAINTENANCE PART

1шт.

32

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

35

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

2шт.

MAINTENANCE PART

1шт.

36

86620026

FLANGED BEARING

4шт.

MAINTENANCE PART

1шт.

37

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

6шт.

38

86637251

DRIVEN SPROCKET

44T

2шт.

MAINTENANCE PART

1шт.

39

309046

CHAIN,#50, 96 Links x 15.88mm = 1524mm

Roller, #50, 96 Pitches, Includes: (1) Roller Link

1шт.

MAINTENANCE PART

1шт.

25816

OFFSET LINK

RC50

2шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

25194

CONNECTING LINK

RC50, Spring Style

2шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

40

86634554

SUPPORT

End Guard

2шт.

MAINTENANCE PART

1шт.

41

86618417

GUARD

1.5M Pickup

23шт.

MAINTENANCE PART

1шт.

42

412093

SELF-TAP SCREW

M6 x 1 x 12

105шт.

MAINTENANCE PART

1шт.

43

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

MAINTENANCE PART

1шт.

44

703960

WASHER

1-1/4" OD, Hardened

1шт.

MAINTENANCE PART

1шт.

45

86634547

SHAFT

4шт.

46

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

MAINTENANCE PART

1шт.

47

88130

NUT,1/2"-20, GC

4шт.

MAINTENANCE PART

1шт.

48

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

16шт.

49

832-46410

NUT,M10 x 1.5, Cl 8

59шт.

MAINTENANCE PART

1шт.

50

688917

WASHER

8шт.

51

86634545

CAM

1шт.

MAINTENANCE PART

1шт.

52

86634546

COUPLING

2шт.

53

326210

GROOVED PIN

Type A, 5/16" x 1-3/4"

2шт.

54

86628669

ANGLE BAR

4шт.

MAINTENANCE PART

1шт.

55

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

44шт.

MAINTENANCE PART

1шт.

56

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

13/32", Hardened

48шт.

MAINTENANCE PART

1шт.

57

86551419

FINGER

48шт.

MAINTENANCE PART

1шт.

58

855657

PAD

2шт.

62

121202

CHAIN

RC50, 5/8" Pitch, ASA Standard, Riveted Type, 79 Pitches, Includes" (1) Offset Link

1шт.

MAINTENANCE PART

1шт.

25194

CONNECTING LINK

Connecting, RC50, Spring Style

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

63

86543385

SHAFT

Hex

1шт.

64

86633239

ANGLE

RH

1шт.

65

86633238

ANGLE

LH

1шт.

67

733-5040

COTTER PIN,M5 x 40

2шт.
