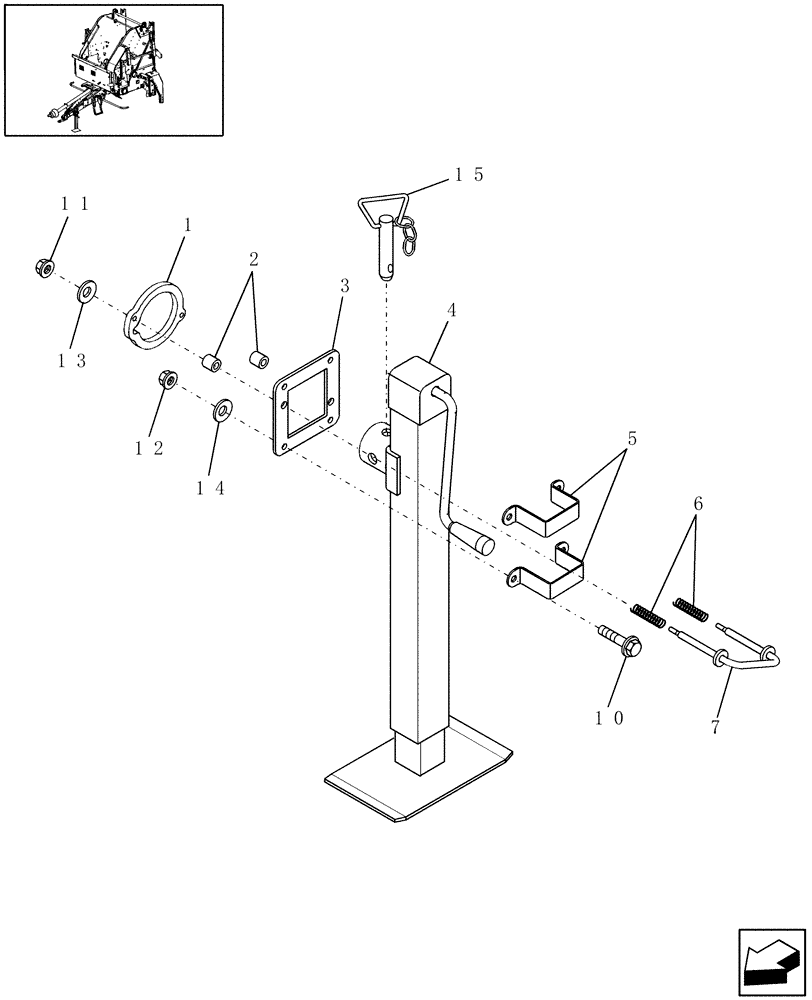

Запчасти Case IH RB464 (12.46) - JACK, HEAVY DUTY (12) - MAIN FRAME

1

86620971

RING

1шт.

2

86636799

SPACER,10.3mm ID x 19.05mm OD x 19.05mm L

2шт.

3

86620973

STRAP

1шт.

4

86643129

JACK

Heavy Duty

1шт.

Components are N.S.S.

1шт.

5

86627939

CLAMP

2шт.

6

86628108

SPRING

2шт.

7

86627946

U-BOLT

Special, M6 x 1, Threaded

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

12

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

15

87035356

PIN ASSY.,15.88mm OD

Pull 5/8"

1шт.
