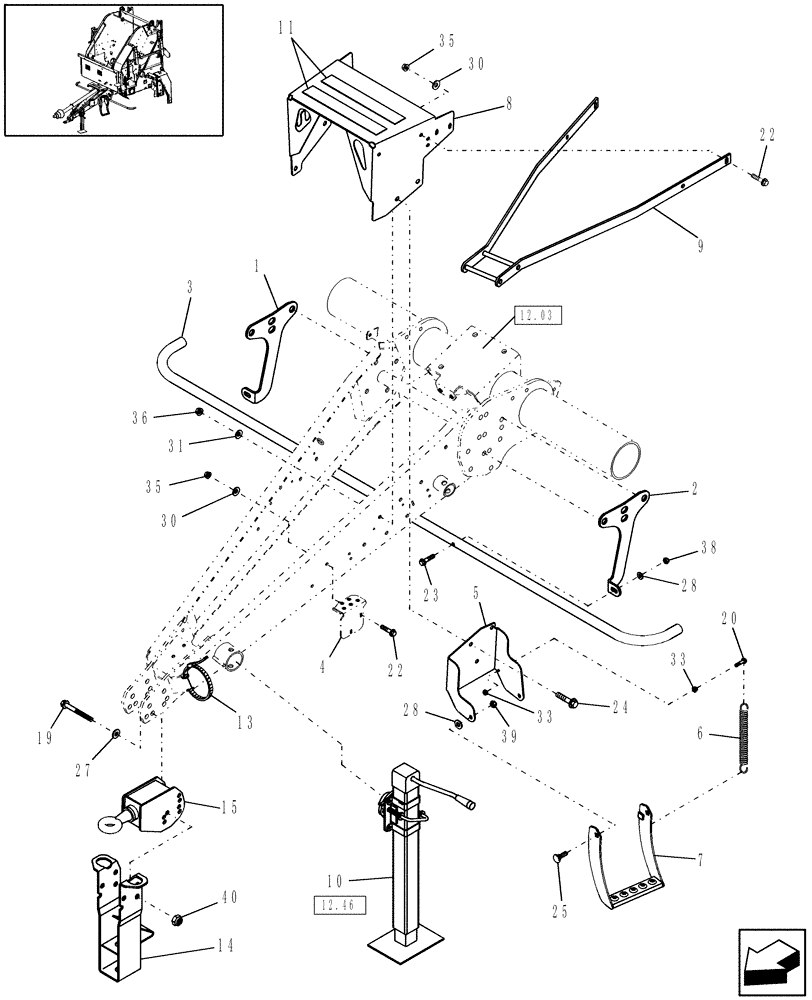

Запчасти Case IH RB464 (12.19) - RING HITCH, EUROPE & R.O.W. (12) - MAIN FRAME

1

87053969

ANGLE

RH

1шт.

Use Existing Hardware

1шт.

2

87053968

BRACKET

LH

1шт.

Use Existing Hardware

1шт.

3

87053661

BAR

Safety, Italy

1шт.

3

87644264

PLATE

Safety, France

1шт.

4

87050286

STEP

1шт.

5

86640703

SUPPORT

1шт.

6

27310

SPRING

1шт.

7

86642808

STEP

1шт.

8

87588755

STEP

Italy

1шт.

8

87588754

STEP

France

1шт.

9

87586081

SUPPORT

1шт.

10

86643129

JACK

Heavy Duty

1шт.

Components are N.S.S.

1шт.

11

263636

ANTI-SKID STRIP

2шт.

12

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

13

249730

SECURING STRAP,8" L

1шт.

14

NS

NOT SERVICED

Shipping Bracket

1шт.

15

86643543

HITCH

Italy

1шт.

15

86636673

HUB

France

1шт.

19

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

Italy

3шт.

19

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

3шт.

20

86511839

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

22

9804262

BOLT,M10 x 39.2mm, Cl 8.8

8шт.

23

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

24

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

6шт.

25

374895

CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8

2шт.

27

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Special, Hardened

16шт.

28

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

6шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

31

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

33

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

35

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

36

9804279

FLANGE NUT,Hex, M12, Cl 8

6шт.

38

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

39

100038

NUT,M12 x 1.75, Cl 8

2шт.

40

86000441

NUT,M16 x 2.0, Cl 8

Prevailing Torque

16шт.
