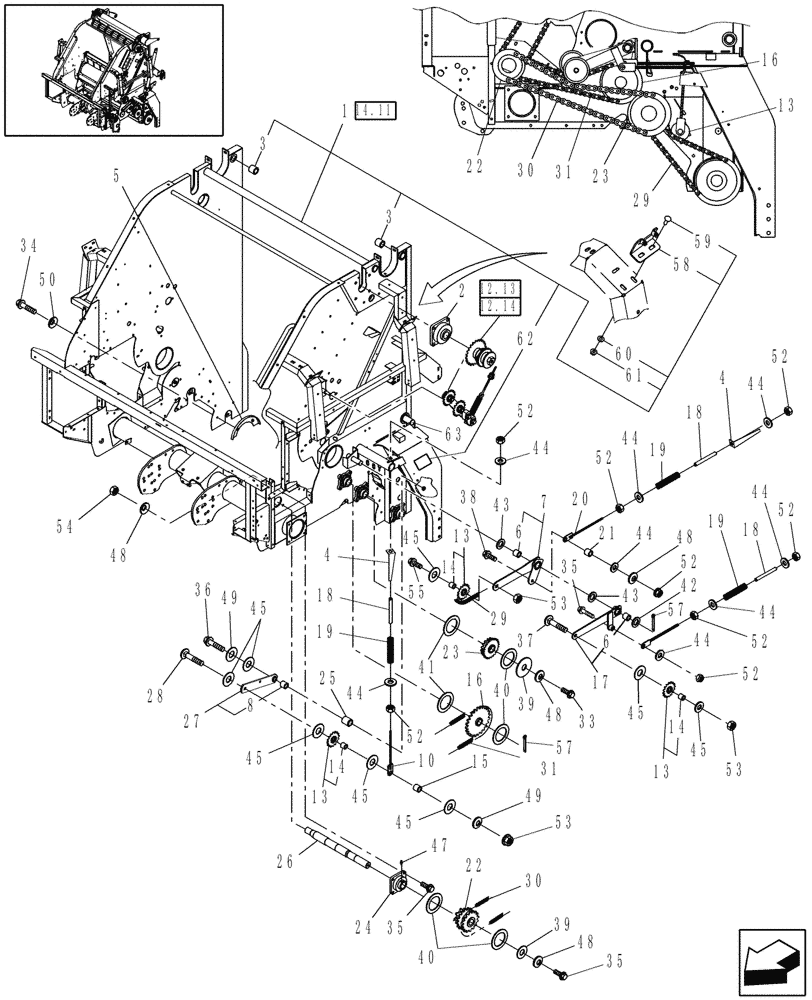

Запчасти Case IH RB464 (12.16) - MAIN FRAME & DRIVE, LH, STUFFER FEEDER (12) - MAIN FRAME

1

87630650

FRAME

Main, North America, Twine, Includes: Ref. 62

1шт.

1

87630652

FRAME

Main, North America, Twine/Net, Includes: Ref. 62

1шт.

1

87630651

FRAME

Main, Europe & R.O.W., Twine

1шт.

87630653

FRAME

Main, Europe & R.O.W., Twine/Net

1шт.

2

86590752

BEARING ASSY

1шт.

MAINTENANCE PART

1шт.

3

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

MAINTENANCE PART

1шт.

4

86643093

INDICATOR

2шт.

5

86637198

HALF-DISC

2шт.

6

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

MAINTENANCE PART

1шт.

7

86632214

ARM

Inner

1шт.

8

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

10

87714825

BOLT,M12 x 1.75 x 362mm L

1шт.

13

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

13

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only

3шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

14

144819C91

BEARING

1шт.

MAINTENANCE PART

1шт.

15

46710

SPACER,16.27mm ID x 25.48mm OD x 11.1mm Thk

1шт.

16

86610108

SPROCKET

25 T, RC 80

1шт.

MAINTENANCE PART

1шт.

17

86632217

LIFT ARM

Outer

1шт.

18

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

19

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression, 8-5/8" L

3шт.

20

86633971

BOLT,M12 x 1.75 x 377.5mm L

Linkage, M12 x 1.75 Threaded

2шт.

21

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

2шт.

22

86613345

SPROCKET

Triple, (1)13T, (2)18T, RC 80

1шт.

MAINTENANCE PART

1шт.

23

86613346

SPROCKET

Double, (1)25T, (1)17T, RC 80

1шт.

MAINTENANCE PART

1шт.

24

86609558

BEARING ASSY,45mm ID

1шт.

MAINTENANCE PART

1шт.

25

86614030

SPACER

1шт.

26

86604821

SHAFT ASSY.

1шт.

27

86611436

ARM

1шт.

28

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

1шт.

29

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 Pitches, Includes: Ref. 56

1шт.

MAINTENANCE PART

1шт.

30

9804061

CHAIN,80, 84 Links x 25.4mm = 2133.6mm

Roller, RC 80, 84 Pitches, Includes: Ref. 56

1шт.

MAINTENANCE PART

1шт.

31

87622422

CHAIN (AG),80, 65 Links x 25.4mm = 1651mm

RC 80, 65 Total Pitches, Includes: Ref. 51 & 56

1шт.

MAINTENANCE PART

1шт.

33

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

1шт.

34

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

35

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

6шт.

36

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

1шт.

37

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

1шт.

38

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

39

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Special, Hardened

2шт.

40

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

41

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

42

29696

SHIM,.005" Thk

2шт.

43

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

44

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

10шт.

45

495-11066

WASHER,5/8", SAE

1шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

49

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

50

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

51

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

52

825-1412

NUT,M12, Cl 8

12шт.

53

832-46416

NUT,M16 x 2, Cl 8

3шт.

54

9706685

NUT,M12 x 1.75, Cl 8

2шт.

55

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

1шт.

56

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

MAINTENANCE PART

1шт.

57

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

58

87037410

HINGE

Lower, Square-Shaped

4шт.

59

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

60

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

61

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

62

86631518

DANGER DECAL

English

2шт.

62

86632801

DECAL

DANGER, French

2шт.

63

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.
