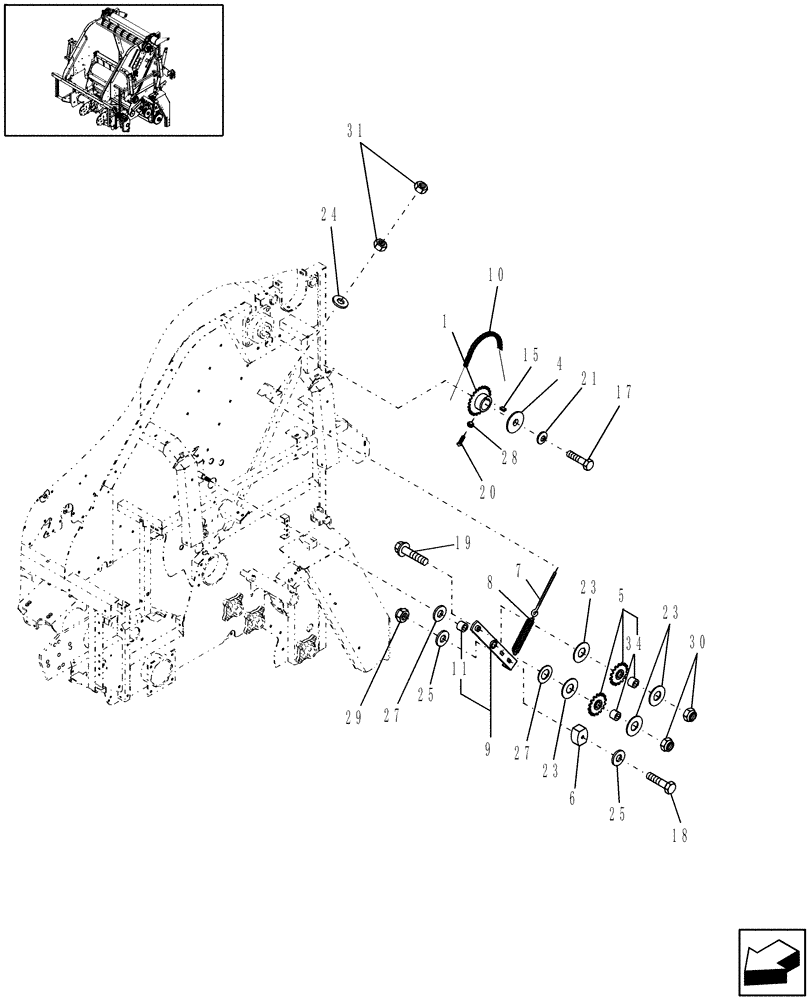

Запчасти Case IH RB464 (12.14) - APRON & CLUTCH DRIVE, LH, NORTH AMERICA (12) - MAIN FRAME

1

86637269

DRIVEN SPROCKET,RC80, 22T

1шт.

MAINTENANCE PART

1шт.

4

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

1шт.

5

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

5

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

MAINTENANCE PART

1шт.

6

87030996

IDLER

Plastic

2шт.

MAINTENANCE PART

1шт.

7

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

8

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

9

86582659

ARM

1шт.

10

86537440

CHAIN,80-C, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches, Includes: Ref. 16

1шт.

MAINTENANCE PART

1шт.

11

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

15

87483

KEY,0.31" x 1.5" L

Square, .31" 1.50"

1шт.

16

86537459

LINK,25.4mm Pitch

1шт.

MAINTENANCE PART

1шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

18

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

19

9804272

BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd

1шт.

20

86542824

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"

1шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

23

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

24

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

25

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

27

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

28

86509499

JAM NUT,3/8"-16, G2

2шт.

29

100038

NUT,M12 x 1.75, Cl 8

1шт.

30

86000441

NUT,M16 x 2.0, Cl 8

Prevailing Torque

2шт.

31

9628503

NUT,3/8"-16, G5

2шт.

34

66553

BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W

2шт.

MAINTENANCE PART

1шт.

35

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.
