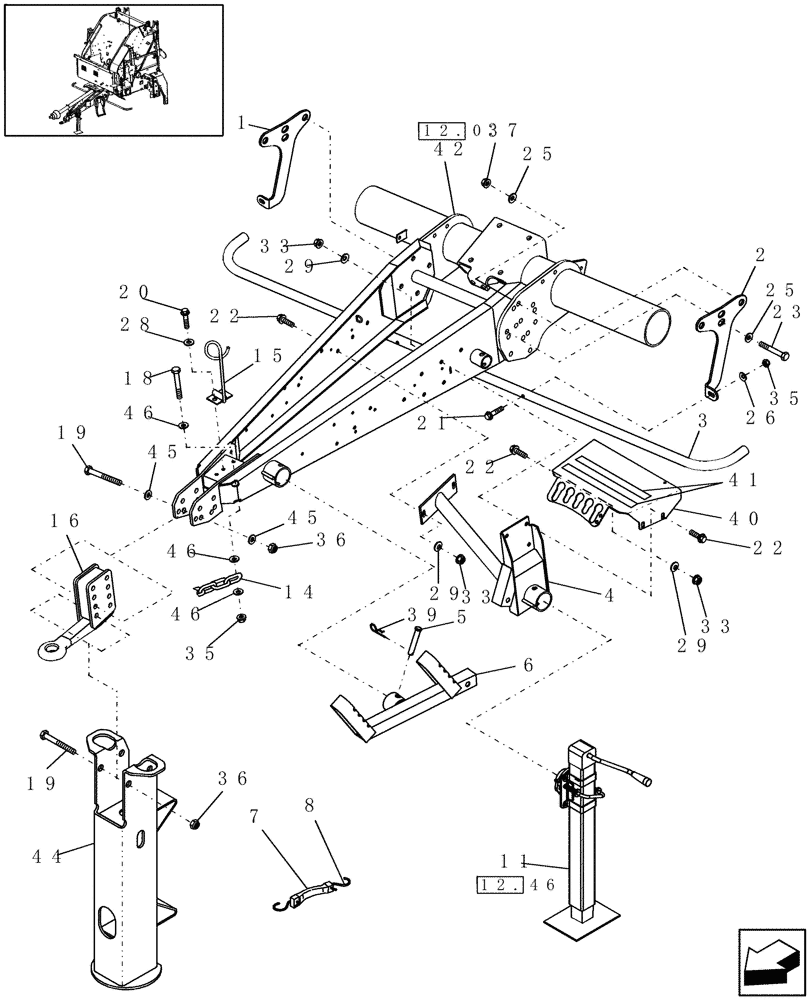

Запчасти Case IH RB464 (12.06[2]) - HIGH HITCH, EUROPE & R.O.W. (12) - MAIN FRAME

1

87053969

ANGLE

RH

1шт.

Use Existing Hardware

1шт.

2

87053968

BRACKET

LH

1шт.

Use Existing Hardware

1шт.

3

87010727

BAR

Safety, 2466 mm Lg.

1шт.

Used on Stuffer-Feeder Units in Europe & R.O.W. Only

1шт.

3

87053661

BAR

Safety, 2486 mm Lg.

1шт.

Used on Rotor Units in Europe & R.O.W. Only

1шт.

4

87032220

MOUNTING PARTS

1шт.

5

270135

CLEVIS PIN

1шт.

6

86979534

STEP

1шт.

7

273672

FASTENER

1шт.

8

115680

HOOK

2шт.

11

86643129

JACK

Heavy Duty

1шт.

Components are N.S.S.

1шт.

14

196348

CHAIN,823.91mm L

1шт.

15

87042252

SUPPORT

1шт.

16

87023114

HITCH

Ring

1шт.

18

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

2шт.

19

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

6шт.

20

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

21

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

2шт.

22

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

8шт.

23

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

10шт.

25

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

Special, Hardened

18шт.

26

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

33

9804279

FLANGE NUT,Hex, M12, Cl 8

8шт.

35

832-46410

NUT,M10 x 1.5, Cl 8

4шт.

36

832-46416

NUT,M16 x 2, Cl 8

6шт.

37

832-41416

NUT,M16 x 2, Cl 10

8шт.

39

129365

COTTER PIN

.094" x 2-5/16"

1шт.

40

87556966

STEP

1шт.

41

263636

ANTI-SKID STRIP

Safety, 4" x 55"

2шт.

42

87016978

HITCH ASSY

1шт.

44

NS

NOT SERVICED

Shipping Bracket

1шт.

45

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Plated

8шт.

46

495-21044

WASHER,3/8"

6шт.
