Запчасти Case IH RB464 (11.18) - WHEELS, 10 PLY 16", NORTH AMERICA (11) - WHEELS

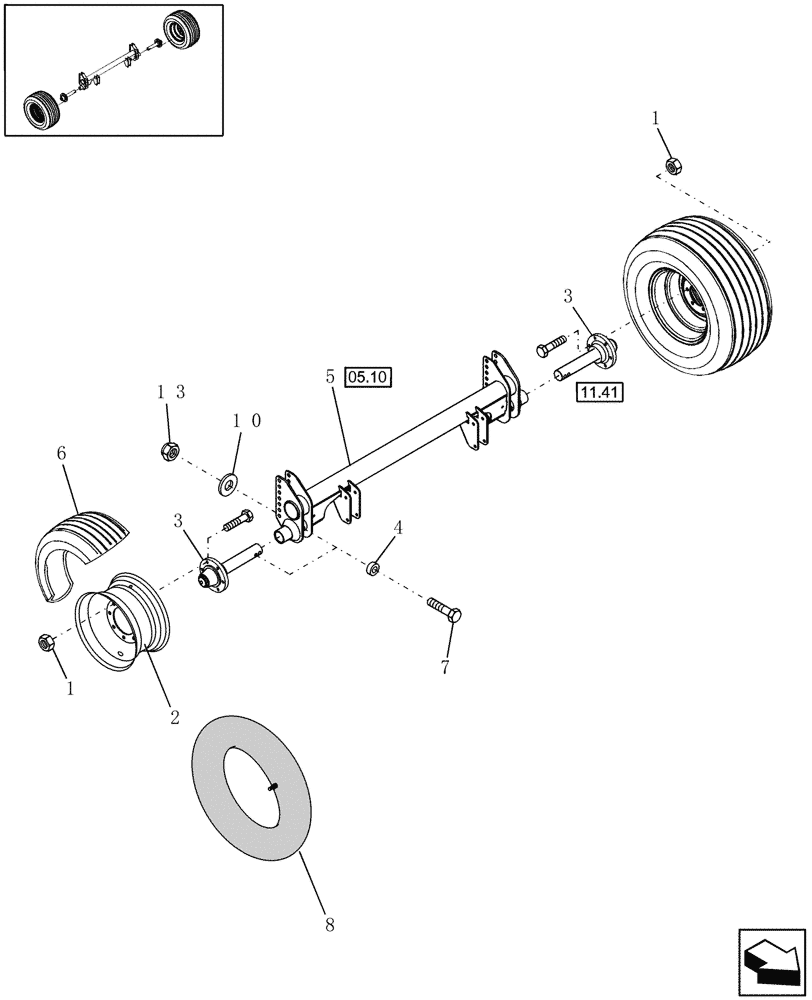

Схема запчастей Case IH RB464 - (11.18) - WHEELS, 10 PLY 16", NORTH AMERICA (11) - WHEELS
13
8
4
3
1
11.41
6
3
1
5
10
2
7
05.10

Артикул

Название

Примечание

Количество

1

86625632

WHEEL NUT,Hex, M18 x 1.5

Wheel, M18 x 1.5 UNF

12шт.

2

87018701

WHEEL

16.00 x 17, Serial Range: -Y9N043084

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

2

87715422

WHEEL

16.1 x 14 - 6, Start Serial: Y9N043085

2шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

Used on All Rotor Units Built Y9N043085 & After

1шт.

2

84822041

WHEEL

16.00 x 17, Start Serial: Y9N043085

2шт.

3

86631642

HUB

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

0C

ORDER COMPONENTS

Axle

2шт.

6

86570141

TYRE/TIRE

19.0/45 - 17, 10 Ply, All Models, Serial Range: -Y9N043084

2шт.

Prior to P.I.N. Y8N038893 for RB564 Only

1шт.

6

87715417

TYRE/TIRE

18L - 16.1SL, 10 Ply, RB564 Only

2шт.

P.I.N. & After Y8N038894 for RB564 Only

1шт.

Used on All Rotor Units Built Y9N043085 & After

1шт.

6

87481616

TYRE/TIRE

19/45 - 17, Start Serial: Y9N043085

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

PL

PROCURE LOCALLY

Inner Tube for 480 x 45 - 17, 10 Ply

2шт.

9

87045051

VALVE

Air

2шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

2шт.

13

832-46416

NUT,M16 x 2, Cl 8

2шт.

Выбрано товаров: 21
