Запчасти Case IH RB464 (11.14) - WHEELS & TIRES, PICKUP, 4 PLY, 4.80/4.00 X 8 (11) - WHEELS

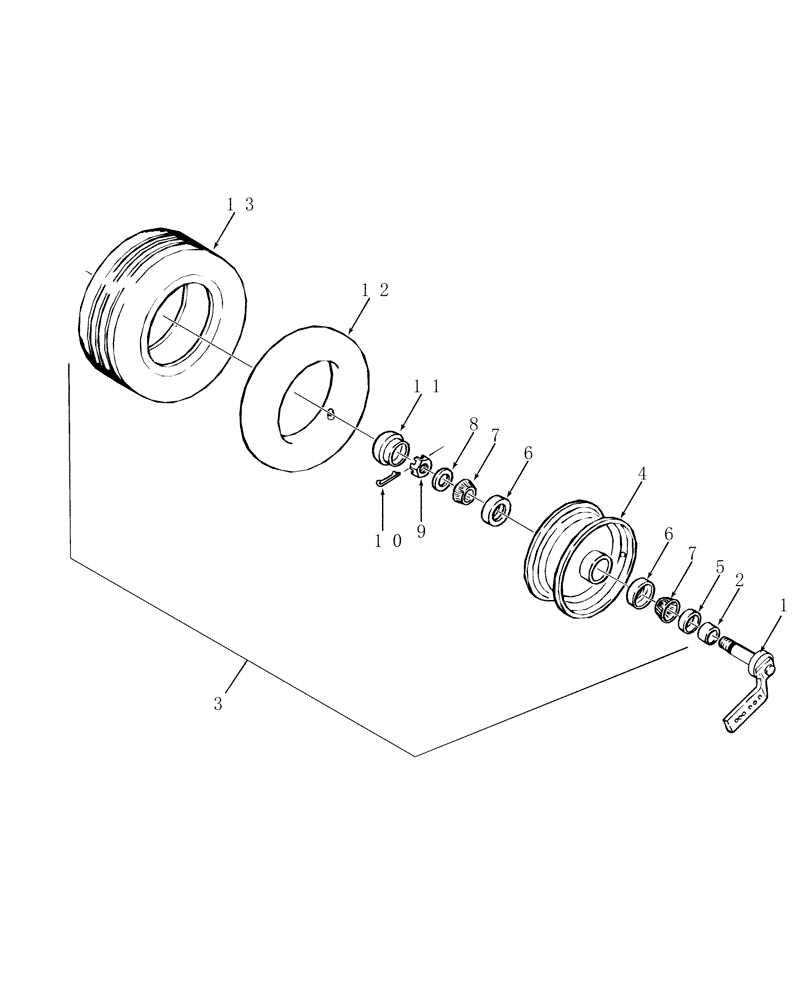

Схема запчастей Case IH RB464 - (11.14) - WHEELS & TIRES, PICKUP, 4 PLY, 4.80/4.00 X 8 (11) - WHEELS
3
6
11
10
4
7
6
8
12
1
5
13
7
9
2

Артикул

Название

Примечание

Количество

1

855698

SUPPORT

Bracket

2шт.

2

86634544

SEALING RING COLLAR

2шт.

3

86616347

WHEEL ASSY

2шт.

4

86616348

WHEEL

2шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

Oil

2шт.

6

572564R1

BEARING CUP

Tapered Roller

4шт.

7

D29266

ROLLER BEARING,1" ID x 0.58"

Tapered Roller

4шт.

8

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

Special, .060" Thk

2шт.

9

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

2шт.

10

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

11

200734

HUB CAP

2шт.

12

25447

TIRE TUBE

Inner, 4.00 - 8

2шт.

13

136378

TYRE/TIRE

4.80/4.00 x 8, 4 Ply, Tubeless

2шт.

Выбрано товаров: 13
