Запчасти Case IH RB464 (11.10[1]) - WHEELS & TIRES WIDE PICKUP,15 X 6.00 - 6, USED ON ALL NORTH AMERICA BALERS & EUROPE ROTOR BALERS, P.I.N. Y9N043084 & PRIOR (11) - WHEELS

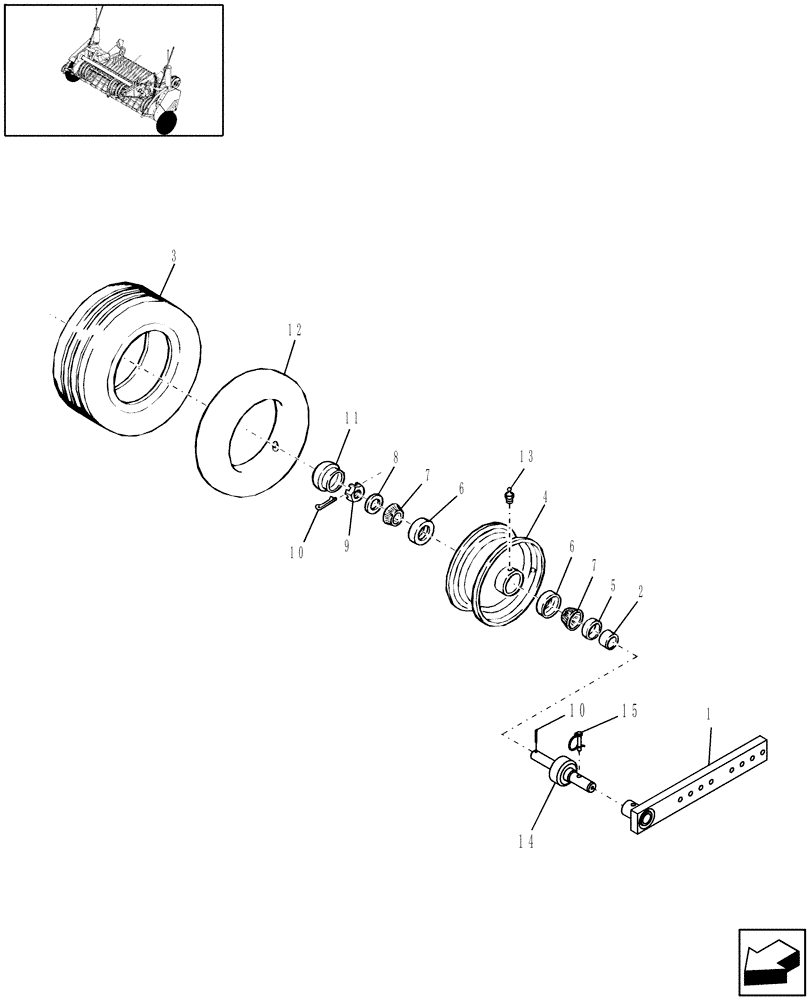

Схема запчастей Case IH RB464 - (11.10[1]) - WHEELS & TIRES WIDE PICKUP,15 X 6.00 - 6, USED ON ALL NORTH AMERICA BALERS & EUROPE ROTOR BALERS, P.I.N. Y9N043084 & PRIOR (11) - WHEELS
10
13
7
7
12
14
11
15
5
4
9
6
8
2
6
1
3
10

Артикул

Название

Примечание

Количество

1

86640157

SUPPORT

1шт.

2

86611228

SPACER

1шт.

3

86611311

TYRE/TIRE

15 x 6.00 - 6

1шт.

4

87055161

RIM

6 x 3.5

1шт.

5

136376

SEAL,31.75mm ID x 50.42mm OD x 6.75mm Thk

Oil

1шт.

6

572564R1

BEARING CUP

Tapered Roller

2шт.

7

D29266

ROLLER BEARING,1" ID x 0.58"

Tapered Roller

2шт.

8

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

Special, .060" Thk

1шт.

9

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Jam, G2, 1"-14

1шт.

10

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

11

200734

HUB CAP

1шт.

12

279538

TUBE

Inner, 15 x 6 x 6

1шт.

13

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

14

87046768

SHAFT ASSY.

1шт.

15

87017328

PIN,9.53mm OD

1шт.
