Запчасти Case IH RB464 (08.90) - SHIELDS, NET (08) - SHEET METAL/DECALS

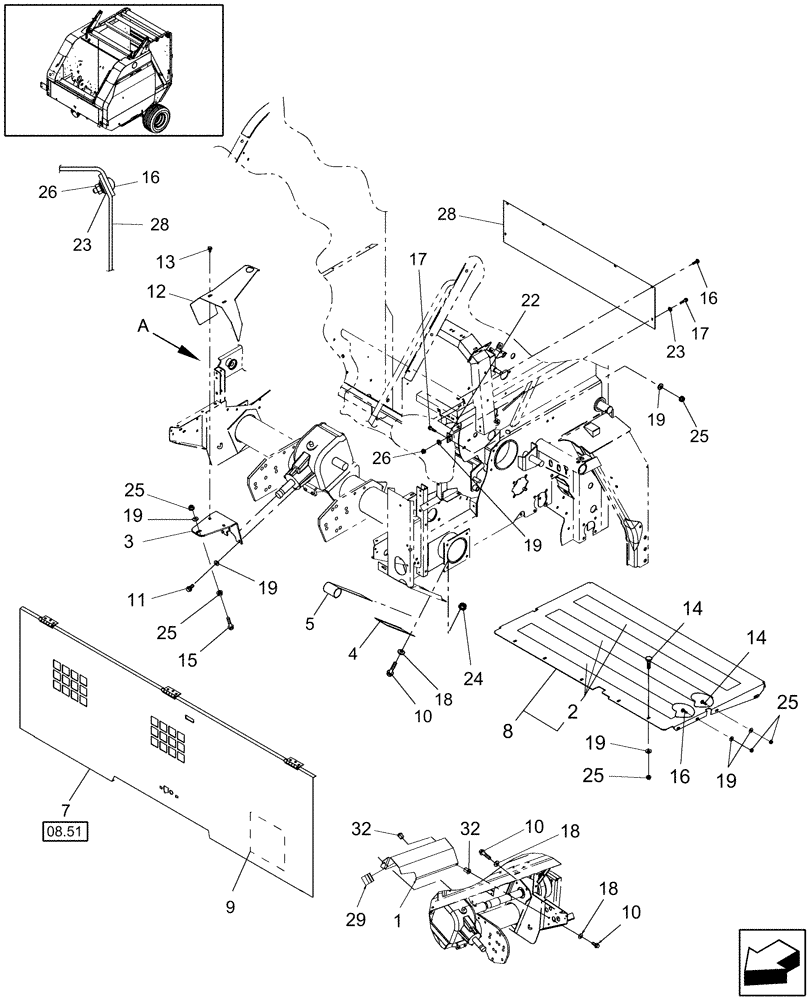

Схема запчастей Case IH RB464 - (08.90) - SHIELDS, NET (08) - SHEET METAL/DECALS
19
18
24
1
10
19
7
19
32
4
08.51
23
19
2
3
19
18
32
25
22
8
28
14
5
25
15
26
16
18
23
17
25
16
9
10
17
25
28
10
29
14
26
25
16
11
19
13
12

Артикул

Название

Примечание

Количество

1

87037949

SHIELD

Includes: Ref. 31

1шт.

2

87017059

FLOOR

1шт.

3

84146191

ANGLE

1шт.

4

86631554

CHANNEL

1шт.

5

86631522

SHEET METAL

Stuffer Tool

1шт.

6

87638749

DOOR

Net, Includes Decals

1шт.

7

86636528

BRACKET

1шт.

8

84135421

SHIELD

1шт.

9

87564481

DECAL

Net Routing

1шт.

10

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

5шт.

11

86643976

ANTI-SKID STRIP

Safety, 4" x 56"

3шт.

12

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

5шт.

13

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

14

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

15

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

16

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

9шт.

17

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

19

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

17шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

21

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

22

86626584

BRACKET

5шт.

23

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

9шт.

24

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

5шт.

25

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

13шт.

26

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

28

86635162

SHIELD,Rubber Coated

1шт.

29

87019330

RUBBER SEAL

1шт.

30

86629542

NUT,M8 x 1.25, Cl 8.8

7шт.

31

86610198

INSERT,M6 x 1

1шт.

32

86610198

INSERT,M6 x 1

Threaded, M6

2шт.

33

87037375

WARNING DECAL

Net Knife, English

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

33

87037730

DECAL

WARNING, Net Knife, French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary.

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

Выбрано товаров: 36
