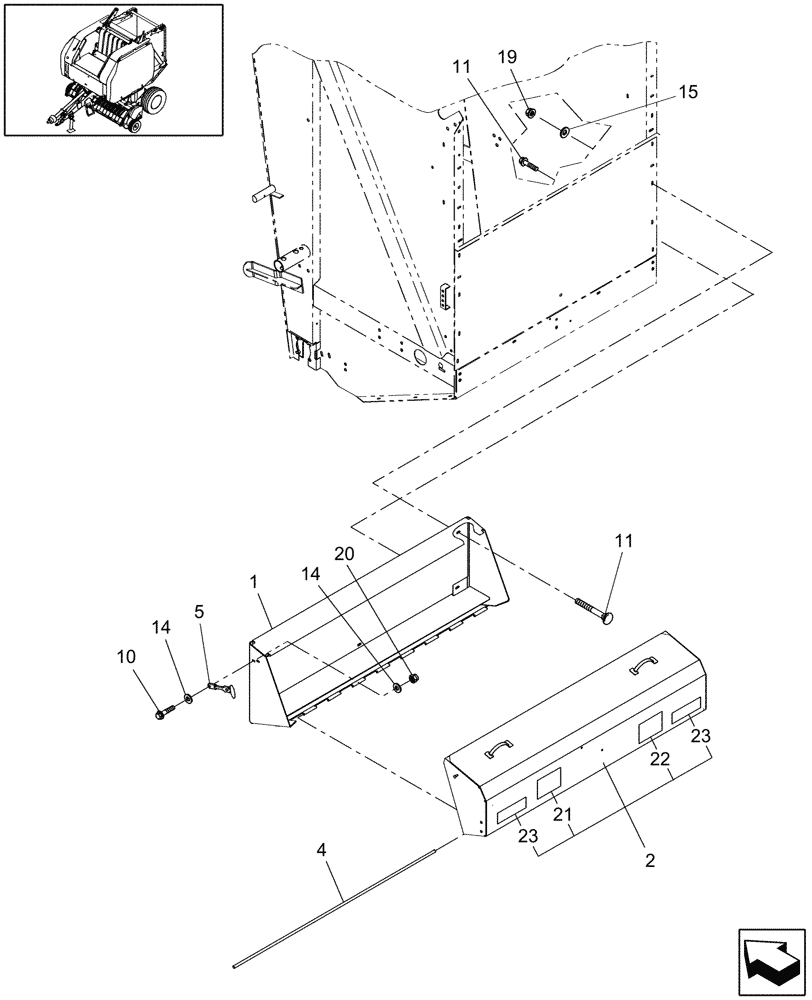

Запчасти Case IH RB464 (08.75) - SHIELDS, NET BOX, SINGLE (08) - SHEET METAL/DECALS

1

86729858

SUPPORT

1шт.

2

87618129

LID

1шт.

4

9617447

ROLL PIN

Hinge

1шт.

5

86000448

LATCH

Rubber

2шт.

10

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

11

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

4шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

20

832-46406

NUT,M6 x 1, Cl 8

4шт.

21

86631519

DANGER DECAL

English

1шт.

21

86632802

DECAL

DANGER, French

1шт.

22

86631516

WARNING DECAL

English

1шт.

22

86632799

DANGER DECAL

WARNING, French

1шт.

23

86547781

REFLECTOR,RED

Red Retroreflective

2шт.
