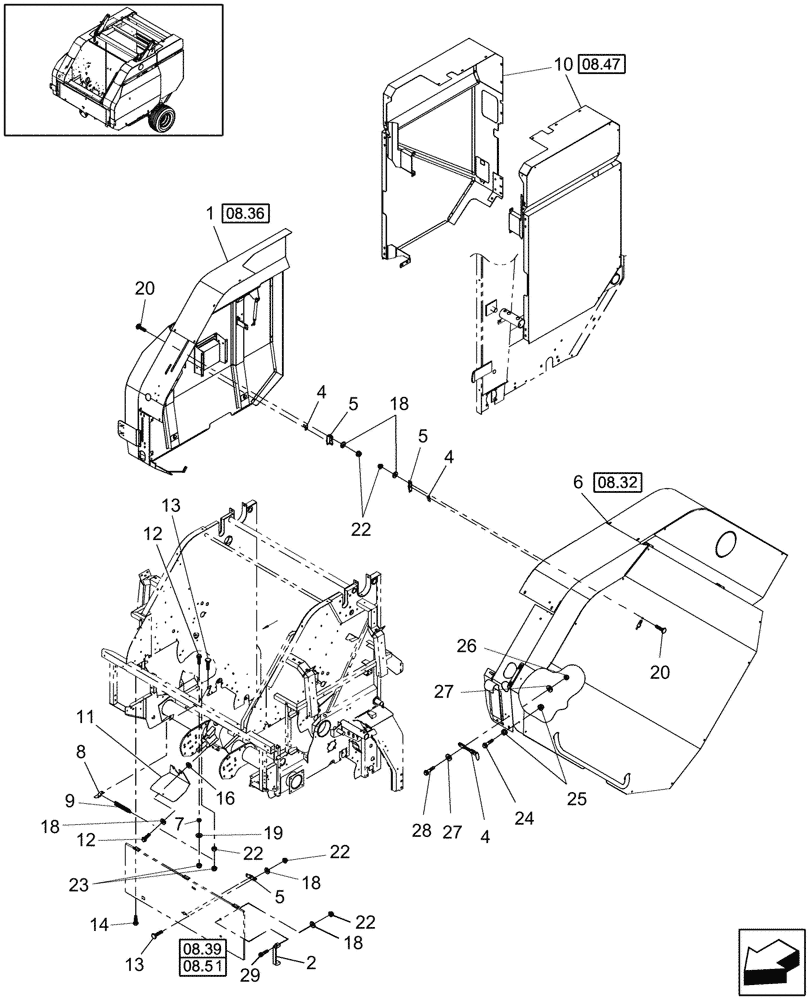

Запчасти Case IH RB464 (08.12) - SHIELDS, EUROPE & R.O.W. (08) - SHEET METAL/DECALS

1

0C

ORDER COMPONENTS

Shields, RH

1шт.

2

84025452

HANDLE

1шт.

4

86000448

LATCH

2шт.

5

84015292

LATCH

Latch, 1/4 Turn

3шт.

6

0C

ORDER COMPONENTS

Shields, LH

1шт.

7

86979427

SPACER

1шт.

8

87024149

LATCH

1шт.

9

12255

SPRING

1-3/4" Lg.

1шт.

10

0C

ORDER COMPONENTS

Shields, Rear

1шт.

11

86643122

SHIELD

1шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

13

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

3шт.

14

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

9шт.

16

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

9шт.

19

495-11034

WASHER,5/16", SAE

1шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

9шт.

23

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

24

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

25

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

26

832-46406

NUT,M6 x 1, Cl 8

4шт.

27

495-21031

WASHER,1/4"

8шт.

28

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

29

9706749

HEX SOC SCREW,M8 x 25mm, Cl 12.9

2шт.
