(88.060.04) - DIA KIT, INFEED DISC

Запчасти Case IH RB455A (88.060.04) - DIA KIT, INFEED DISC (88) - ACCESSORIES

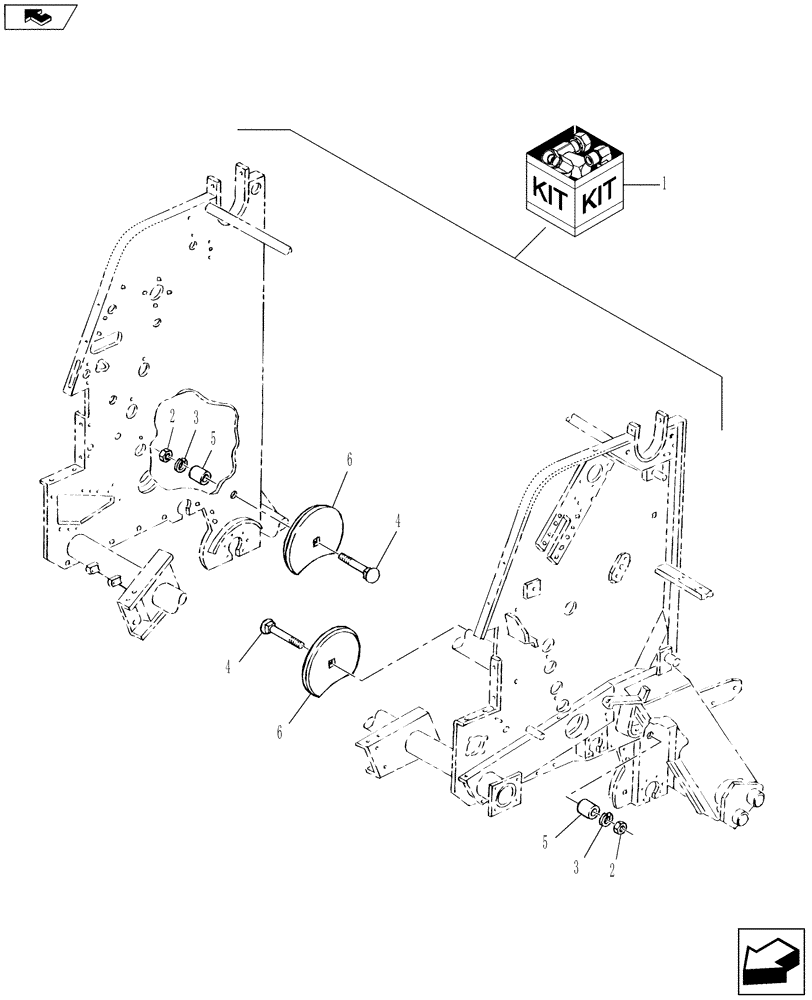

Схема запчастей Case IH RB455A - (88.060.04) - DIA KIT, INFEED DISC (88) - ACCESSORIES
2
3
6
3
home
4
4
5
5
2
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84134361

DIA KIT, HARVESTER

Infeed Disc, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

280431

NUT,1/2"-13, G5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

4

280268

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

2шт.

5

86559259

SPACER

2шт.

6

86503055

DISC

Infeed

2шт.
