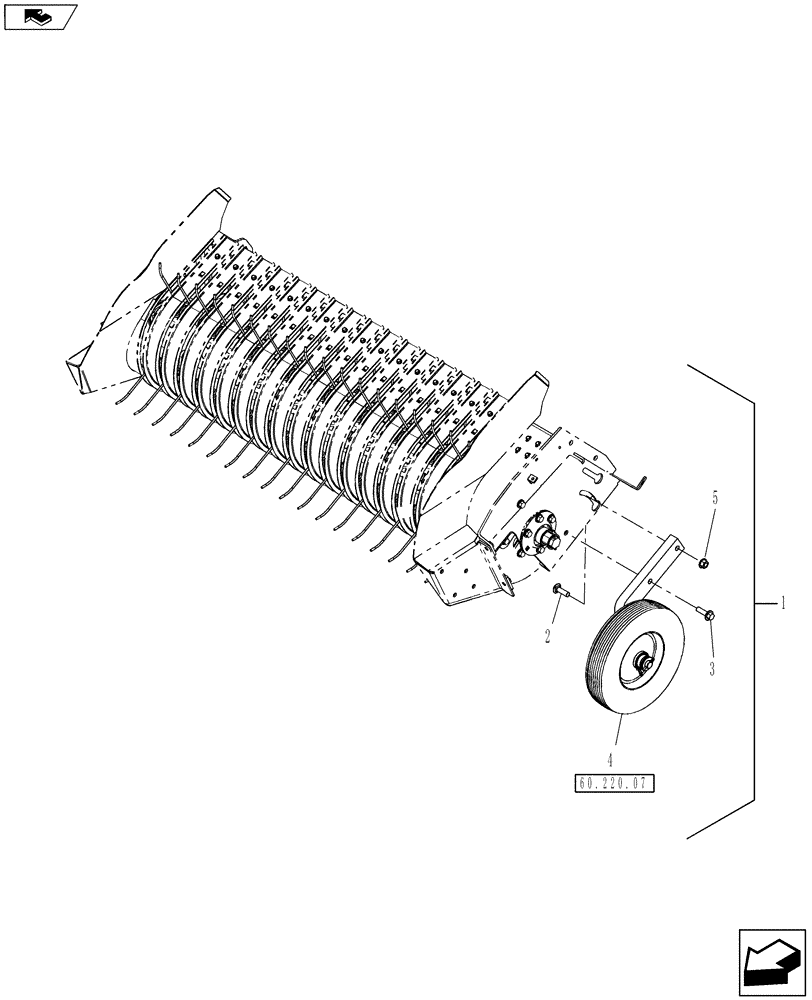

Запчасти Case IH RB455A (88.060.03) - DIA KIT, LH PICKUP WHEEL (88) - ACCESSORIES

1

84204326

DIA KIT, HARVESTER

Pickup Gage Wheel

1шт.

84204327

1шт.

2

334682

CARRIAGE BOLT,Sht Nk, M12 x 1.75 x 50mm, Cl 8.8, Full Thd

1шт.

3

9671487

BOLT,Hex, M12 x 50mm, Cl 8.8

1шт.

4

0C

ORDER COMPONENTS

Pickup Gage Wheel

1шт.

5

9804279

FLANGE NUT,Hex, M12, Cl 8

1шт.

6

84134391

INSTRUCTION

Installation

1шт.
