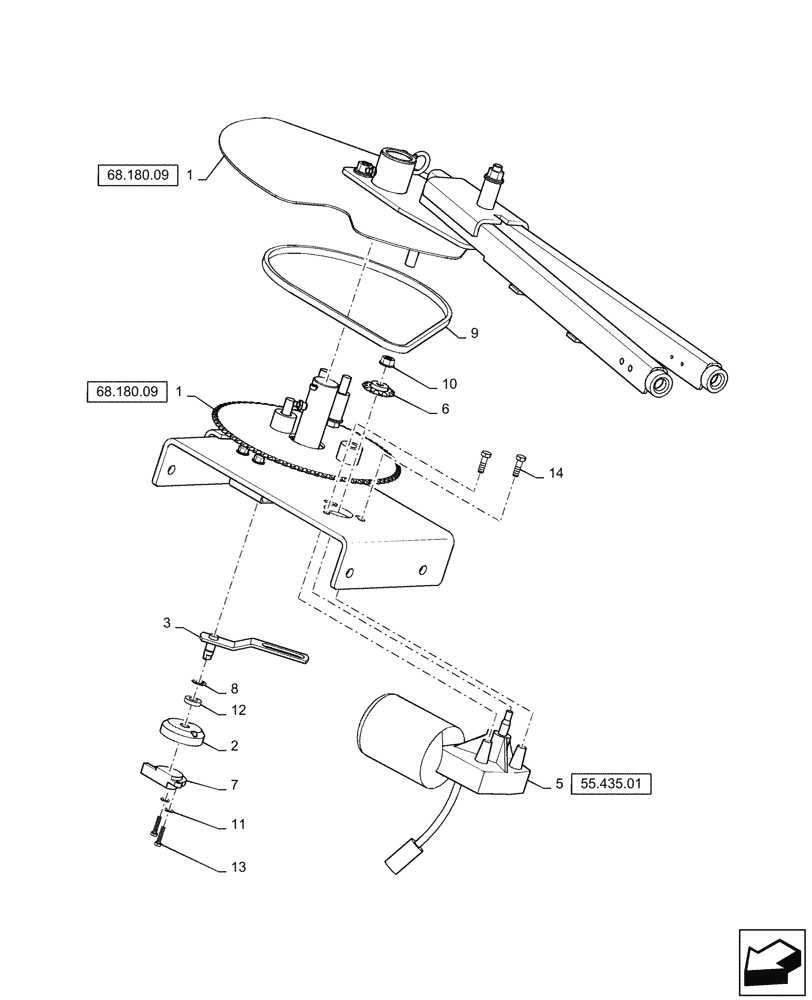

Запчасти Case IH RB455A (68.180.10) - TWINE PIVOT ELECTRIC (68) - TYING/WRAPPING

1

0C

ORDER COMPONENTS

Twine Pivot

1шт.

84256626

1шт.

2

84308004

HUB

1шт.

3

84318531

ARM

1шт.

4

86516818

CONNECTING LINK

1шт.

Not Illustrated

1шт.

5

84377502

ELECTRIC MOTOR

1шт.

6

84258225

SPROCKET,RC35, 11T

11T RC35

1шт.

7

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

8

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

9

84259286

CHAIN,35, 83 Links x 3/8" = 31-1/8" L

83 Pitches, Includes: Ref. 4 & 15

1шт.

10

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

1шт.

11

9672521

LOCK WASHER,Ext Tooth, #10

2шт.

12

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

13

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

14

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

15

117226

OFFSET LINK

1шт.

Not Illustrated

1шт.
