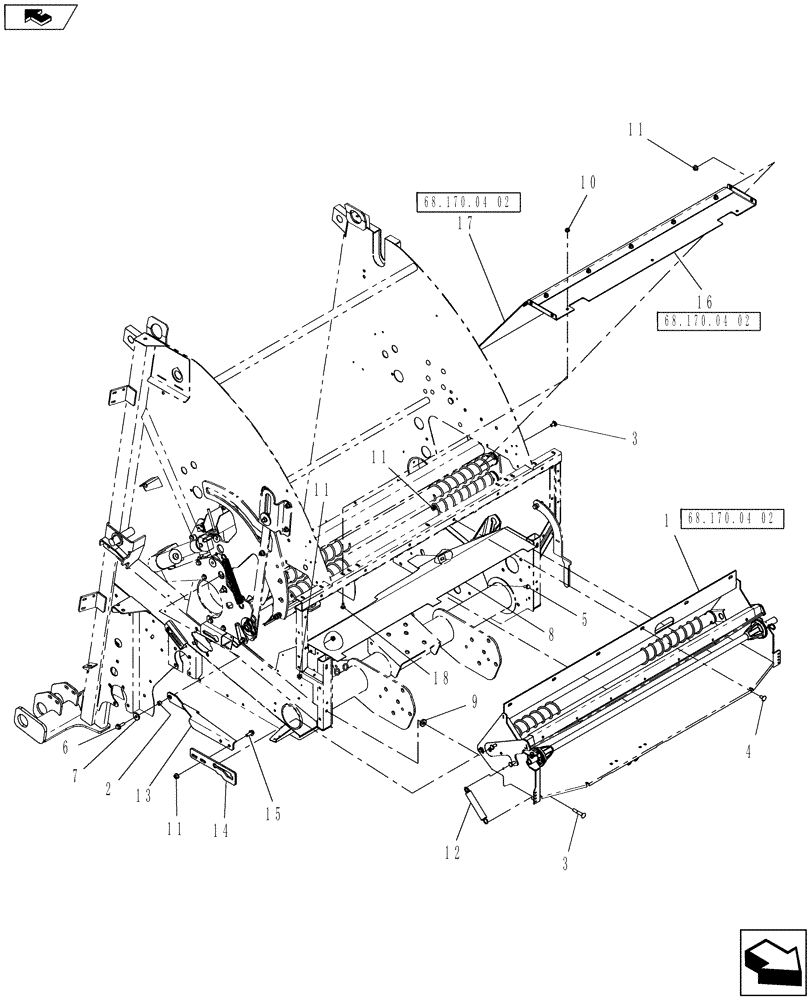

Запчасти Case IH RB455A (68.170.04[01]) - NET WRAP, STATIONARY ROLL & BRAKE TENSION MOUNTING (68) - TYING/WRAPPING

1

0C

ORDER COMPONENTS

Net Roll Box

1шт.

84234803

1шт.

2

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

5шт.

3

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

8шт.

4

86512447

CARRIAGE BOLT,Short Square Neck, M10 x 60mm, Class 8.8

2шт.

5

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

7

87644151

WASHER

1шт.

8

84298559

PROTECTION PLATE

1шт.

9

86592713

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

14шт.

11

9804278

FLANGE NUT,M10 x 1.5, Cl 8

14шт.

12

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

2шт.

13

84309530

LINKAGE

1шт.

14

84325420

ADJUSTING PLATE

1шт.

15

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

16

84365484

PANEL SUPPORT

1шт.

17

84361221

PROTECTION PLATE

1шт.

18

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

7шт.
