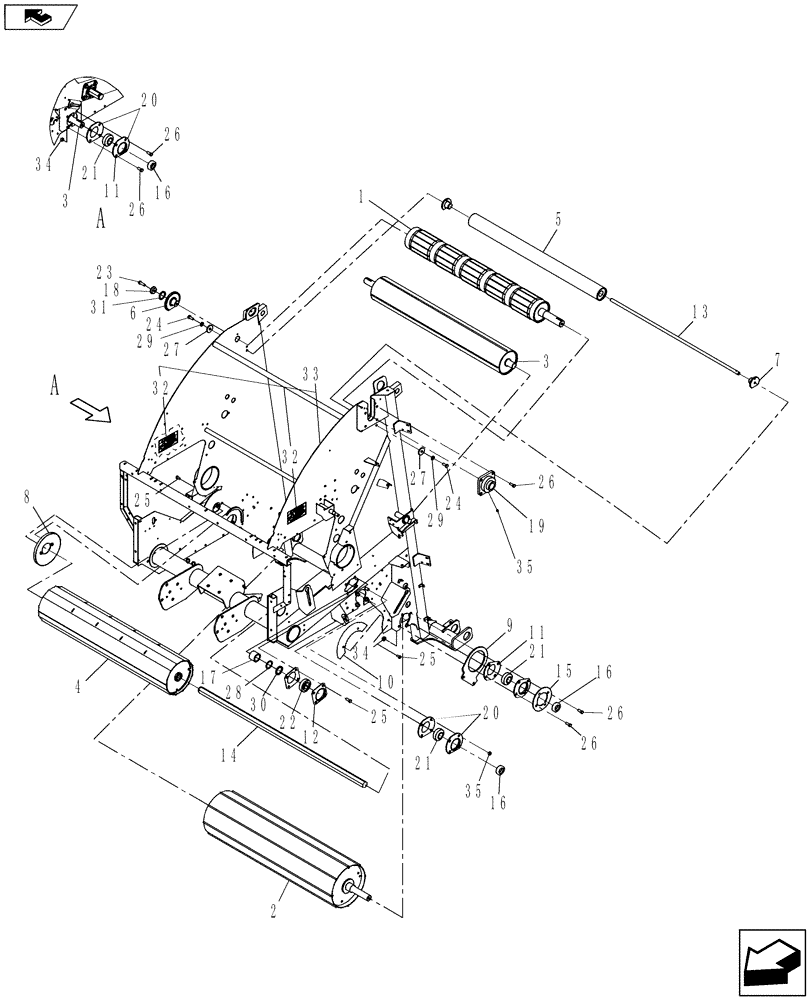

Запчасти Case IH RB455A (62.150.05) - MAIN FRAME & ROLLERS (62) - PRESSING - BALE FORMATION

1

84345406

ROLL

Drive

1шт.

2

84210314

ROLLER

Floor

1шт.

3

84255586

ROLLER

Starter

1шт.

4

87392560

ROLL

Stationary

1шт.

5

9842286

ROLLER

Back Wrap, Includes: Ref. 36

1шт.

6

86516311

SUPPORT

1шт.

7

86521602

SUPPORT

2шт.

8

87602845

SHIELD

2шт.

9

84255602

MOUNT

Pickup

2шт.

10

86506990

HALF-DISC

2шт.

11

84353131

FLANGE

4шт.

12

86837676

FLANGED BEARING

4шт.

13

9823371

SHAFT

1шт.

14

84209364

ROLLER SHAFT

1шт.

15

84133326

RING

2шт.

16

52444

COLLAR,38.2mm ID x 60.33mm OD x 18.3mm Thk

4шт.

17

86622263

HUB

2шт.

18

87398962

HUB,12.5mm ID x 47.42mm OD x 13.2mm L

1шт.

19

86609558

BEARING ASSY,45mm ID

1шт.

20

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

21

52443

BALL BEARING,38.1mm ID x 79.99mm OD x 22mm W

4шт.

22

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

2шт.

23

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

1шт.

24

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

25

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

8шт.

26

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

24шт.

27

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

2шт.

28

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

2шт.

29

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

30

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

2шт.

31

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

1шт.

32

86626959

WARNING DECAL

Shield Open

2шт.

33

84289539

FRAME

Includes: Ref. 32

1шт.

34

9804279

FLANGE NUT,Hex, M12, Cl 8

10шт.

35

56513

PLUG,Hex Soc, 1/8" - 27 NPT

1шт.
