Запчасти Case IH RB455A (62.150.04) - MAIN DRIVE, LH (62) - PRESSING - BALE FORMATION

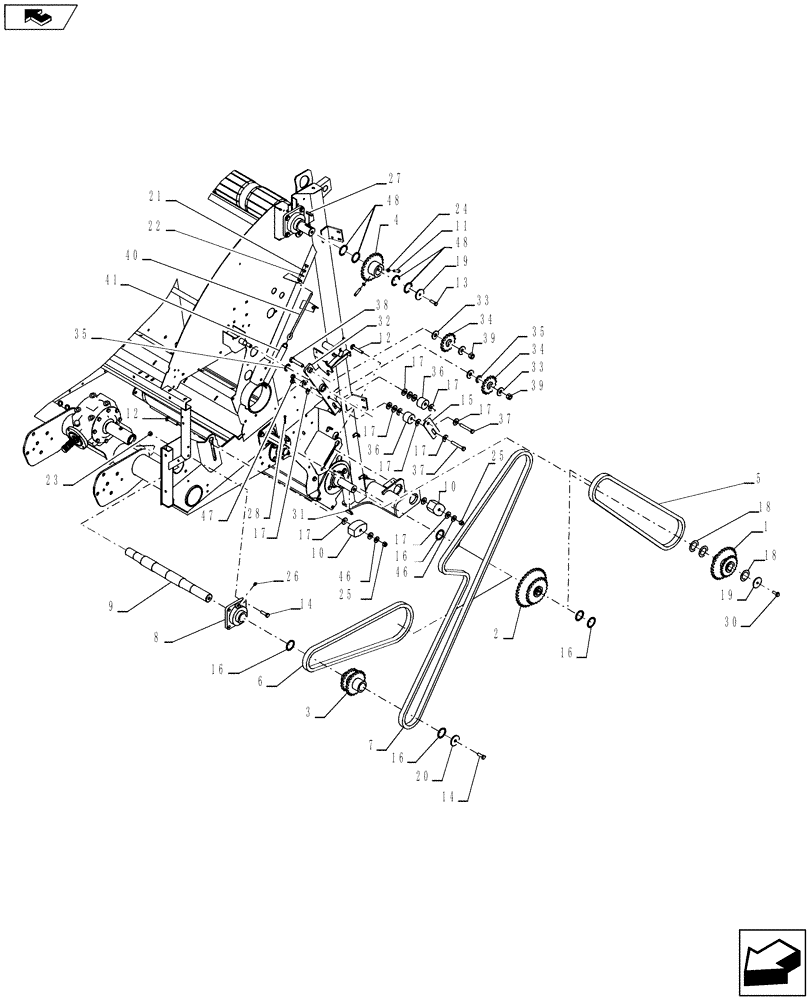

Схема запчастей Case IH RB455A - (62.150.04) - MAIN DRIVE, LH (62) - PRESSING - BALE FORMATION
13
34
12
47
37
36
17
40
25
19
8
16
32
10
home
15
33
16
5
27
25
20
35
17
14
19
39
3
11
34
18
38
22
41
33
48
37
31
17
1
6
17
4
36
35
46
17
17
39
17
16
17
16
48
24
2
26
12
18
46
21
28
14
7
23
17
30
10
9

Артикул

Название

Примечание

Количество

1

84133376

SPROCKET

22T RC 50 & 28T RC 60

1шт.

2

84133375

SPROCKET

23T & 34T RC60

1шт.

3

84133373

SPROCKET

19T & 21T RC60

1шт.

4

84133374

SPROCKET

24T RC60

1шт.

5

84275634

CHAIN

101 Pitches, Includes: Ref. 42 & 43

1шт.

6

84133379

CHAIN

90 Pitches, Includes: Ref. 44

1шт.

7

84232982

CHAIN

184 Pitches, Includes: Ref. 45

1шт.

8

86609558

BEARING ASSY,45mm ID

1шт.

9

86604821

SHAFT ASSY.

1шт.

10

87030996

IDLER

2шт.

11

86542824

SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"

2шт.

12

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

13

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

14

9670288

BOLT,Hex, M12 x 35mm, Cl 8.8

5шт.

15

84266904

PLATE

1шт.

16

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

7шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

18шт.

18

28691

WASHER,39mm ID x 60mm OD x 0.89mm Thk

3шт.

19

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

2шт.

20

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

1шт.

21

9628503

NUT,3/8"-16, G5

2шт.

22

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

23

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

24

86509499

JAM NUT,3/8"-16, G2

2шт.

25

9706685

NUT,M12 x 1.75, Cl 8

2шт.

26

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

1шт.

27

87483

KEY,0.31" x 1.5" L

1шт.

28

87400

COTTER PIN,3/16" x 2"

1шт.

30

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

31

87123

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

32

84262617

ARM

1шт.

33

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

34

87053428

SPROCKET

15T RC60

2шт.

35

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

36

86514717

IDLER WHEEL

2шт.

37

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

2шт.

38

120092

BOLT,M16 x 70mm, Cl 8.8

1шт.

39

86000441

NUT,M16 x 2.0, Cl 8

2шт.

40

183356

EYEBOLT,3/8" - 16 x 10" L

1шт.

41

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

1шт.

42

84134452

CONNECTING LINK,RC60, 3/4" Pitch

2шт.

Not Illustrated

1шт.

43

84134453

OFFSET LINK

1шт.

Not Illustrated

1шт.

44

179243

CONNECTING LINK

1шт.

Not Illustrated

1шт.

45

84372501

CONNECTING LINK

1шт.

Not Illustrated

1шт.

46

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

47

86619803

FLANGE NUT

2шт.

48

87652388

WASHER,45.24mm ID x 56.36mm OD x 1.52mm Thk

4/ARшт.

Выбрано товаров: 51
