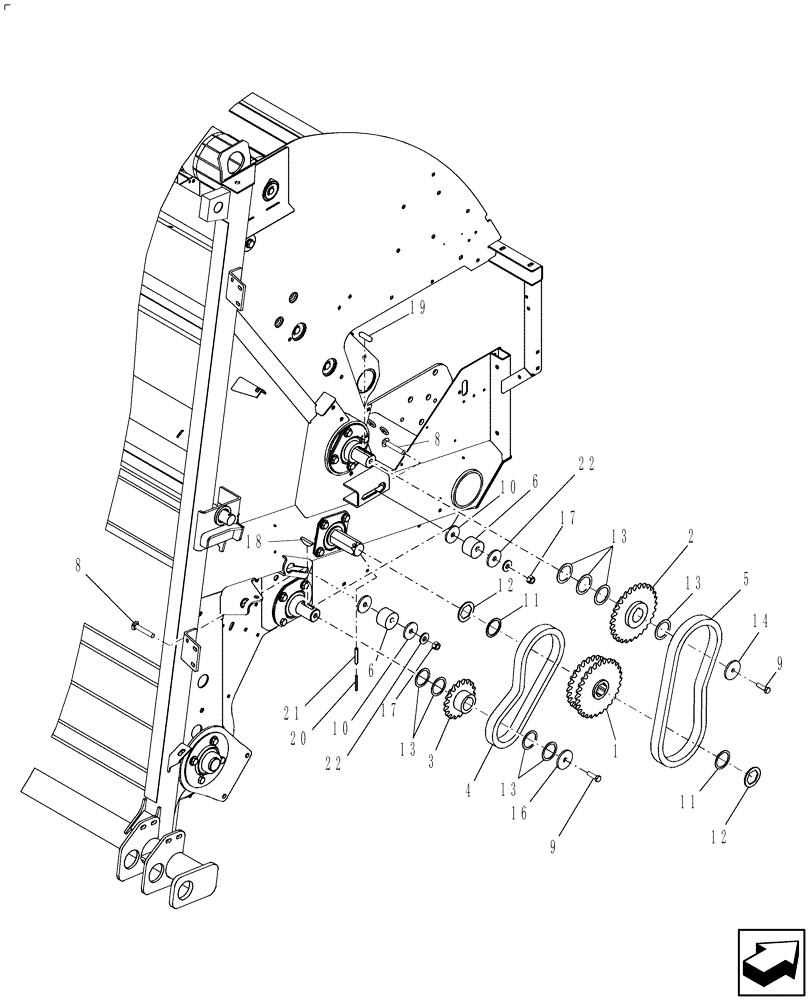

Запчасти Case IH RB455A (62.150.01) - MAIN DRIVE, RH (62) - PRESSING - BALE FORMATION

1

84133377

SPROCKET

25T & 28T RC 60

1шт.

2

84133372

SPROCKET

28T RC 60

1шт.

3

84133378

SPROCKET

18T RC 60

1шт.

4

84133381

CHAIN

45 Pitches, Includes: Ref. 7 & 15

1шт.

5

86621149

CHAIN,60, 57 Links x 19.05mm = 1085.85mm

57 Pitches, Includes: Ref. 7 & 15

1шт.

6

86514717

IDLER WHEEL

2шт.

7

84134453

OFFSET LINK

2шт.

Not Illustrated

1шт.

8

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

2шт.

9

86511845

BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd

2шт.

10

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

4шт.

11

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

2шт.

12

87056525

WASHER

2шт.

13

604201

WASHER

8/ARшт.

14

86624647

WASHER,10.8mm ID x 57mm OD x 6.1mm Thk

1шт.

15

84134452

CONNECTING LINK,RC60, 3/4" Pitch

2шт.

Not Illustrated

1шт.

16

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

1шт.

17

9706685

NUT,M12 x 1.75, Cl 8

2шт.

18

87123

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

19

170055

KEY

1шт.

20

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

21

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.
