(62.140.09) - TAILGATE ROLLERS

Запчасти Case IH RB455A (62.140.09) - TAILGATE ROLLERS (62) - PRESSING - BALE FORMATION

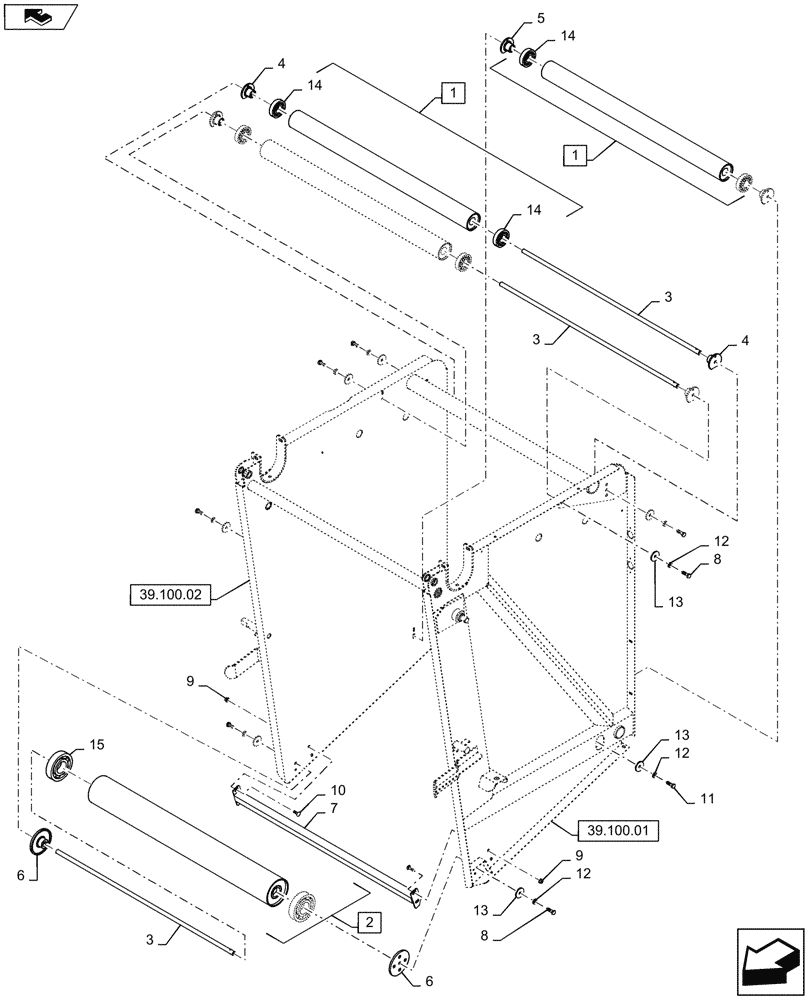

Схема запчастей Case IH RB455A - (62.140.09) - TAILGATE ROLLERS (62) - PRESSING - BALE FORMATION
39.100.02
13
1
14
12
10
home
8
6
15
1
14
13
4
11
6
4
8
7
13
9
9
2
12
3
14
3
12
5
3
39.100.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9842286

ROLLER

Tailgate Idler, Incl 14, Serial Range: -YCN172444

3шт.

1

9842286

ROLLER

Tailgate Idler, Incl 14, Serial Range: YCN172445-YDN179980

3шт.

1

84600572

ROLL

Tailgate Idler, Incl 14, Start Serial: YDN179981

3шт.

1

9842286

ROLLER

Tailgate Idler, Incl 14, Serial Range: YCN172445-YDN179980

2шт.

1

84600572

ROLL

Tailgate Idler, Incl 14, Start Serial: YDN179981

2шт.

1

84562588

ROLL

Tailgate Idler, Rubber Guide, Incl 14, Serial Range: YCN172445-YDN179980

1шт.

1

47522795

ROLL

Tailgate Idler, Rubber Guide, Incl 14, Start Serial: YDN179981

1шт.

2

9849616

ROLL

Tailgate Nose, Incl 15

1шт.

3

9823371

SHAFT

3шт.

4

86521602

SUPPORT

4шт.

5

86516321

SUPPORT

2шт.

6

9608116

SUPPORT

2шт.

7

84255597

ANGLE

1шт.

8

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

6шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

4шт.

10

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

4шт.

11

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

12

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

8шт.

13

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

8шт.

14

9845576

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

, Serial Range: -YDN179980

12шт.

14

84259867

BALL BEARING,38.1mm ID x 80mm OD x 22mm W

, Start Serial: YDN179981

12шт.

15

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

2шт.
