(60.220.05) - HYDRAULIC PICKUP LIFT CYLINDER

Запчасти Case IH RB455A (60.220.05) - HYDRAULIC PICKUP LIFT CYLINDER (60) - PRODUCT FEEDING

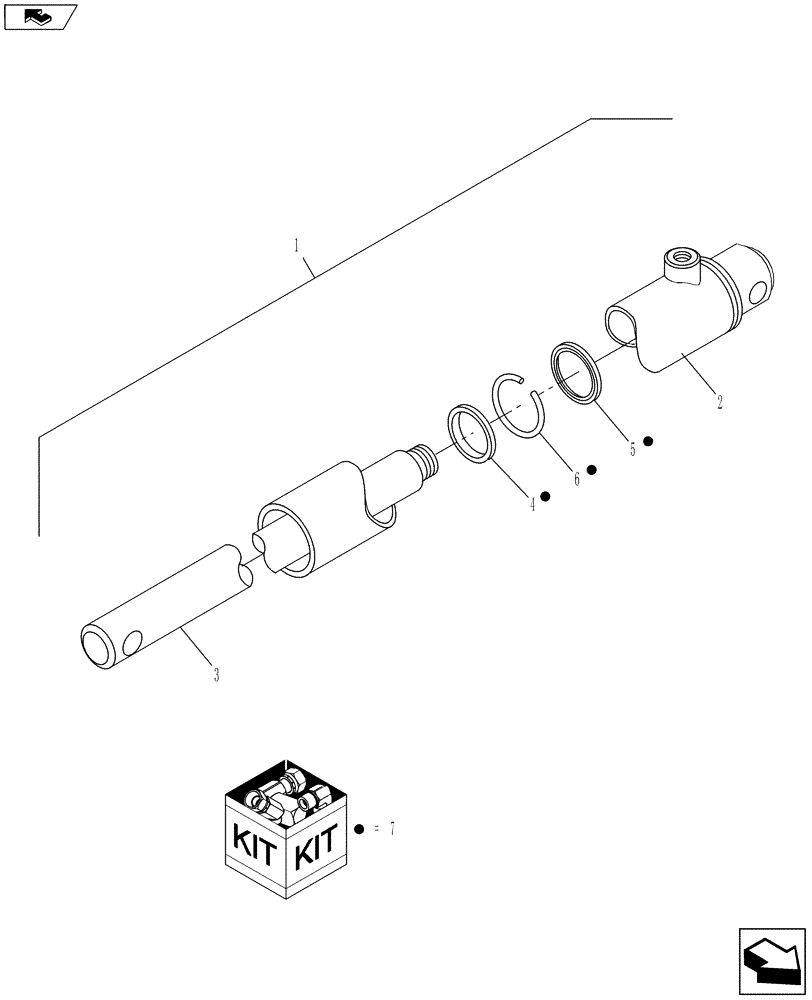

Схема запчастей Case IH RB455A - (60.220.05) - HYDRAULIC PICKUP LIFT CYLINDER (60) - PRODUCT FEEDING
1
home
5
4
2
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87056843

HYDRAULIC CYLINDER,38.1mm Rod, 76.2mm Stroke

Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2010 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

87030513

PISTON ROD

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, 1.50" ID x 1.90" OD

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

7

87030514

SEAL KIT

1шт.
