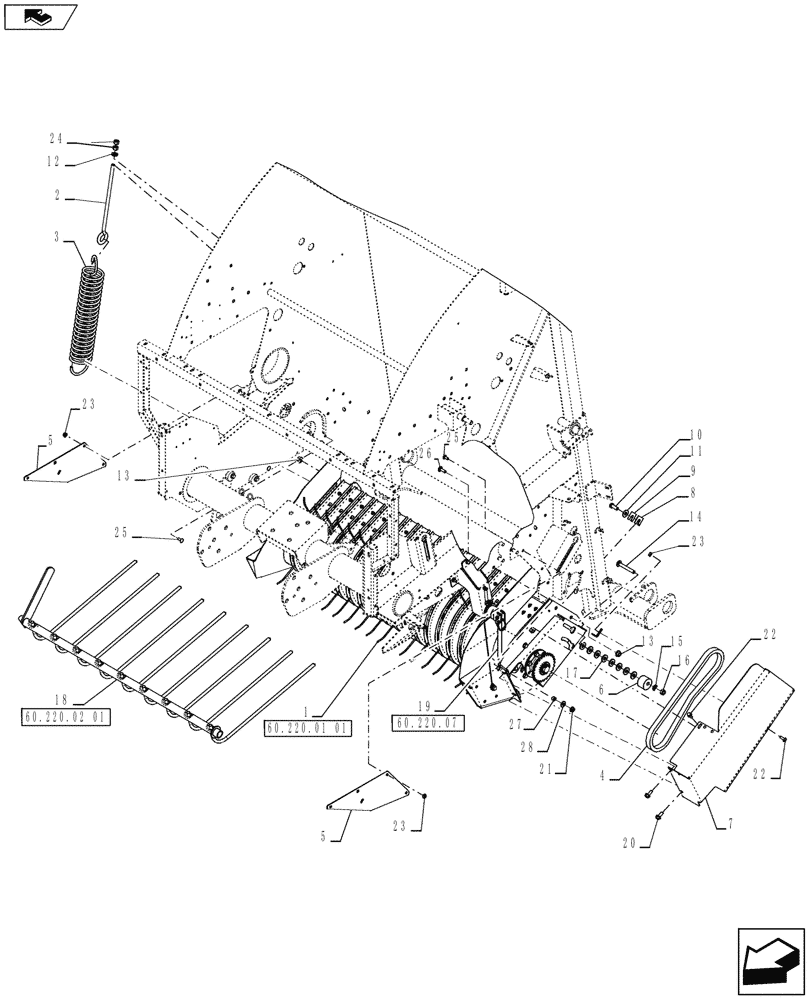

Запчасти Case IH RB455A (60.220.04) - PICKUP DRIVE (60) - PRODUCT FEEDING

1

0C

ORDER COMPONENTS

Pickup

1шт.

84205961

1шт.

2

84256921

EYEBOLT

1шт.

3

84235333

SPRING

1шт.

4

9621910

CHAIN,2050, 36 Links x 31.75mm = 1143mm

36 Pitches, Includes: Ref. 29

1шт.

5

84238886

SHIELD

2шт.

6

86514717

IDLER WHEEL

1шт.

7

84231798

SHIELD

LH

1шт.

8

84333209

SHIM

2.5mm

1шт.

9

84333207

SHIM

1mm

1шт.

10

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

11

87642988

WASHER,13.08mm ID x 31.8mm OD x 1.5mm Thk

4шт.

12

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

1шт.

13

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.

14

334070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 90mm, Cl 8.8

1шт.

15

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

16

412672

NUT,Hex, M12 x 1.75, Cl 10

1шт.

17

87613265

WASHER,0.53" ID x 1.25" OD x 0.13" Thk

8шт.

18

0C

ORDER COMPONENTS

Windguard

1шт.

84302317

1шт.

19

0C

ORDER COMPONENTS

Pickup Lift

1шт.

84133611

1шт.

20

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

21

86619802

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

22

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

7шт.

24

280431

NUT,1/2"-13, G5

2шт.

25

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

26

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

2шт.

27

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

2шт.

28

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

2шт.

29

86977795

CONNECTING LINK

1шт.

Not Illustrated

1шт.
