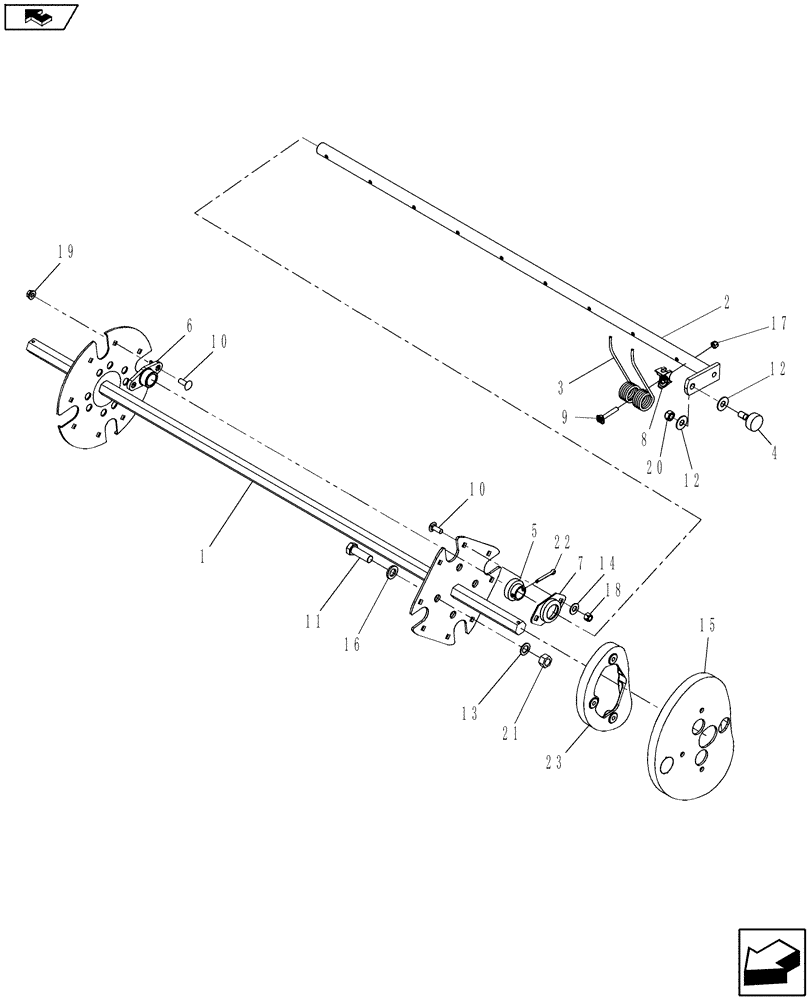

Запчасти Case IH RB455A (60.220.03) - PICKUP REEL (60) - PRODUCT FEEDING

1

84206395

REEL TINE

1шт.

2

84226032

TINE BAR

4шт.

3

87607074

TINE

Economy, Standard

36шт.

3

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Premium, Optional

36шт.

4

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

5

86641856

BEARING,27.1 mm ID x 47 mm OD x 25.4 mm

4шт.

6

638025

FLANGE

4шт.

7

54695

BEARING HOUSING

4шт.

8

87713401

SPACER

Tooth

36шт.

9

84237357

SPECIAL BOLT

36шт.

10

9849938

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 7/8", Gr 5, Full Thd

16шт.

11

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

12

703960

WASHER

8шт.

13

87642936

WASHER,16.8mm ID x 27.7mm OD x 1.7mm Thk

4шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

15

87032200

CAM

LH Outer

1шт.

16

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

17

86629544

NUT,5/16” – 18, GR B

36шт.

18

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

19

247780

SERRATED NUT,Flg, USR, 3/8"-16

8шт.

20

88130

NUT,1/2"-20, GC

4шт.

21

9804280

FLANGE NUT,Hex, M16, Cl 8

4шт.

22

136521

COTTER PIN,5.7mm OD x 44.45mm L

4шт.

23

87032003

CAM

LH Inner

1шт.
