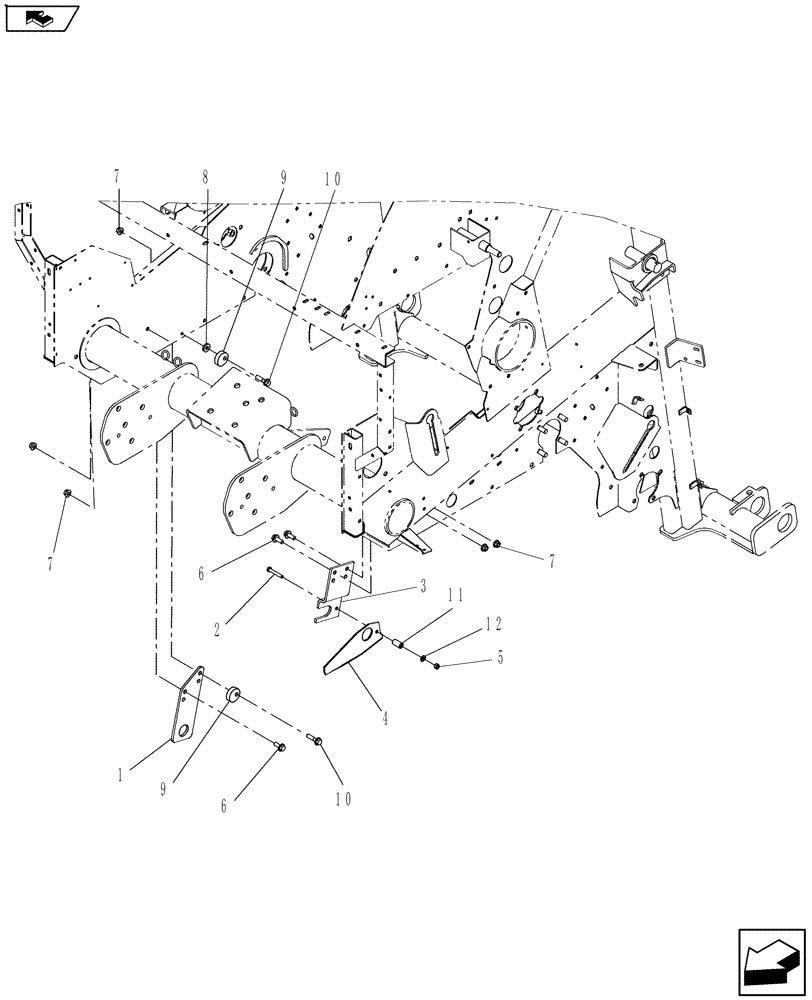

Запчасти Case IH RB455A (60.220.02[02]) - WINDGUARD SUPPORT (60) - PRODUCT FEEDING

1

84315673

SUPPORT

RH

1шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

84300966

SUPPORT

LH

1шт.

4

87017553

ANGLE

LH

1шт.

5

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

6

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

3шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

5шт.

8

86620024

WASHER,10.3mm ID x 25.4mm OD x 5.2mm Thk

5шт.

9

87355307

LOCK

Cam

4шт.

10

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

11

29524

SPRING

2шт.

12

87362

WASHER,5/16" SAE

1шт.
